C17 CRH

Name: C17 CRH
Brand: CROUSE-HINDS (INDUSTRIAL)
SKU: C17 CRH
Price: 21.83 USD
Availability: InStock

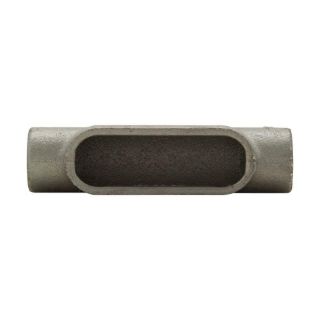

Actual Product May Vary From Image

Product Details

Manufacturer:

CROUSE-HINDS (INDUSTRIAL)

Manufacturer part number:

C17

Product Name:

C17 CRH

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$21.83 / EA

Description

Brand Name

Crouse-Hinds

Type

Type-C

Description

One hundred years after the introduction of the Condulet®, Eaton remains the leader in conduit outlet bodies with its Crouse-Hinds series. The line has grown to six families manufactured in a variety of materials and Form 7 bodies are offered in 11 different shapes to provide the most flexible offering on the market. Form 7 Condulet® outlet bodies approach conduit in size for neat, compact installations. Many shapes and sizes are available for rigid threaded conduit. Our Form 7 family features an exclusive Snaptight and wedge nut cover attachment for an unobstructed cover opening and an integrally gasketed cover saves customers inventory and labor costs. Form 7 is available as components or pre-packaged in various configurations as a SnapPack assembly.

Crouse-Hinds Condulet® Conduit Outlet Body, Type-C, 1/2 in Hub, 2 Hubs, 4 cu-in Capacity, 7 Form, Thread Connection, Feraloy Iron Alloy, Electro-Galvanized/Aluminum Acrylic Painted, 5-3/8 in L x 1-3/8 in W x 1-3/8 in H Dimensions

Application

For rigid conduit, act as pull outlets for conductors being installed, provide openings for making splices and taps in conductors and industrial facilities and factories

Standards

CSA C22.2 File No. 18 | Federal/SPecification W-C-586D | UL File No. 514B

Features

Form 7 Condulet® outlet bodies approach conduit in size for neat, compact installation
Stainless steel cover screw
Conduit hubs have tapered threads and feature integral bushing for protection of wire insulation
Form 7 has exclusive Snaptight™ and wedge nut cover attachment to provide clear, unobstructed cover opening
Wedge nut design facilitates installation and removal
Nuts are held captive in cover, covers can be used with or without gaskets
Form 7 covers with integral sealing gaskets are installed without the use of screws, reducing installation time and costs
Act as pull outlets for conductor being installed
Provides openings for making splices and taps in conductor
Connect conduit sections
Make 90 deg bends in conduit run
Provides taps for branch conduit run
Provides for access to conductor for maintenance and future system changes
Rigid conduit

Specifications

Capacity:	4 cu-in
Connection Type:	Thread
Country of Origin:	US
Dimensions:	5-3/8 in L x 1-3/8 in W x 1-3/8 in H
Finish:	Aluminum Acrylic Painted/Electro-Galvanized
Form:	7
Hub Size:	1/2 in
Material:	Feraloy Iron Alloy
Number of Hubs:	2
