Actual Product May Vary From Image

C500 NER

Name: C500 NER
Brand: Appleton
SKU: C500 NER
Price: 0.78 USD
Availability: InStock

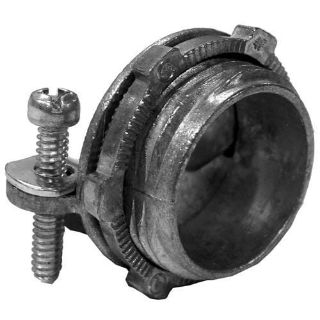

Appleton® NEER™ C-500 2-Screw Service Entrance Cable Connector, 3/8 in Knockout, 14/2 to 12/2 AWG Conductor, Die Cast Zinc

Manufacturer: Appleton

Manufacturer part number: C-500

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
15	91	79
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$0.78

Qty:

Product Details

Brand Name

Appleton®

Type

2-Screw

Description

Appleton® NEER™ Service Entrance Cable Connector, 2-Screw, 3/8 in Knockout, 14/2 to 12/2 AWG Conductor, For Use With: 14 to 2/12 to 2 AWG Non-Metallic Sheathed Cable, Die Cast Zinc, 0.91 in Dia x 0.81 in W Dimensions, Appleton® NEER™ Service Entrance Cable Connector ADDITIONAL DETAILS

Application

For open throat type for nonmetallic sheathed cable

Standards

RoHS Compliant | UL 514B | CSA C22.2 No. 18 | Federal Specification W-F-406D

Features

Male hub threads NPS
Furnished with locknut

Includes

Locknut and Clamp

Specifications

Conductor Size:	14/2 to 12/2 AWG
Country of Origin:	IN
Dimensions:	0.91 in Dia x 0.81 in W
Knockout Size:	3/8 in
Material:	Die Cast Zinc
Suitable For Use With:	14 to 2/12 to 2 AWG Non-Metallic Sheathed Cable
