C50M APN

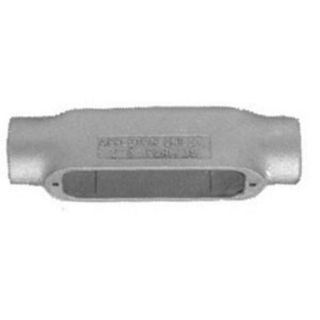

Appleton® UNILETS™ C50-M Type-C Conduit Outlet Body, 1/2 in Hub, Form 35 Form, 4.5 cu-in Capacity, Malleable Iron, Triple Coated
Manufacturer: Appleton
Manufacturer part number: C50-M
Availability: Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
3 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$14.12

Product Details

Brand Name

Appleton®

Type

Type-C

Description

Appleton® Form 35™ Malleable Iron Conduit Outlet Bodies, Covers and Gaskets are used to connect and change direction of conduit runs. In addition to making bends in a conduit system, they allow connections for branch runs. These conduit bodies serve as pulling fittings and permit access to conductors for splicing and maintenance.
Appleton® UNILETS™ Conduit Outlet Body, Type-C, 1/2 in Hub, 2 Hubs, 4.5 cu-in Capacity, Form 35 Form, NEMA FB-1 Enclosure, Tapered FNPT Connection, Surface Mounting, Malleable Iron, Triple Coated, 5.38 in L x 1.31 in W x 1.44 in H Dimensions

Application

For Rigid Steel/Aluminum and IMC Conduit

Standards

ARRA Compliant | UL 514B File No. E2527 | C22.2 No. 18.3/065183 Certified

Features

  • Smooth, rounded integral bushing in hubs protects conductor insulation
  • Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
  • Form 35™ malleable iron UNILETS™ high tensile strength and ductility
  • High corrosion resistance, high impact and shock resistance
  • Sizes with flat back design ideal where fitting is mounted flat against surface

Specifications

Capacity:4.5 cu-in
Connection Type:Tapered FNPT
Country of Origin:MX
Dimensions:5.38 in L x 1.31 in W x 1.44 in H
Enclosure:NEMA FB-1
Finish:Triple Coated
Form:Form 35
Hub Size:1/2 in
Material:Malleable Iron
Mounting Type:Surface
Number of Hubs:2
