C510 NER

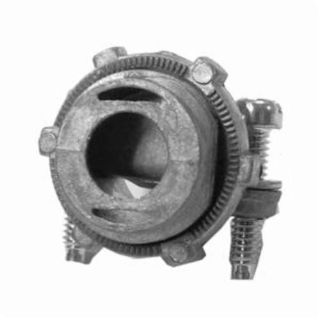

Picture of C510 NER
Actual Product May Vary From Image

Product Details

Manufacturer:
Appleton
Manufacturer part number:
C-510
CBT Inventory
103
Vendor Inventory
Loading...
CBT - CINCINNATI
103
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
103 in stock
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1.32 / EA

Description

Brand Name

Appleton®

Type

2-Screw

Description

Appleton® NEER™ Service Entrance Cable Connector, 2-Screw, 3/8 in Knockout, 14/2 to 10/2 AWG Conductor, For Use With: 14 to 2/10 to 2 AWG Armored Cable, 14 to 2/10 to 3 AWG Metal Clad Cable, Die Cast Zinc, 0.87 in Dia x 0.91 in W Dimensions, Appleton® NEER™ Service Entrance Cable Connector ADDITIONAL DETAILS

Application

Used to terminate regular wall steel or aluminum flexible conduit to a 1/2 in knockout in a dry box or enclosure

Standards

RoHS Compliant | UL 514B | CSA C22.2 No. 18 | Federal Specification W-F-406D

Features

  • Male hub threads NPS
  • Furnished with locknut
  • Combination head screw

Includes

Locknut

Specifications

Conductor Size:14/2 to 10/2 AWG
Country of Origin:IN
Dimensions:0.87 in Dia x 0.91 in W
Knockout Size:3/8 in
Material:Die Cast Zinc
Suitable For Use With:14 to 2/10 to 2 AWG Armored Cable, 14 to 2/10 to 3 AWG Metal Clad Cable

Products Specifications

Brand Name
EGS
Conduit Type
Sheathed Cable
Connection
Male NPS Thread
Material
Die cast zinc
NEMA Rating
FB-1
Type
Screw Connector
