Actual Product May Vary From Image

CCMR005.TXP LIT

Name: CCMR005.TXP LIT
Brand: Littelfuse
SKU: CCMR005.TXP LIT
Price: 39.94 USD
Availability: InStock

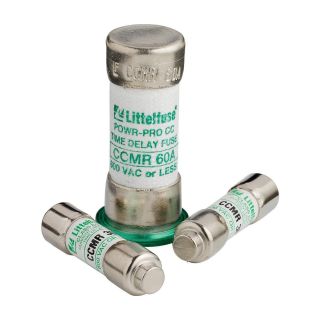

Littelfuse® POWR-GARD® CCMR005.TXP Time Delay Fuse, 5 A, 600 VAC/250 VDC, 20/200 kA Interrupt, CC Class, Cartridge Body

Manufacturer: Littelfuse

Manufacturer part number: CCMR005.TXP

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	2
CRUSH BEARINGS & DRIVES - LEXINGTON	CBT - LOUISVILLE
0	0
Loading...

$39.94

Qty:

Product Details

Brand Name

Littelfuse®

Description

The CCMR series is ideal for space saving protection of motors upto 40 hp. It was designed specifically to withstand sustained starting currents of small motors. The CCMR 60 fuse is the smallest 60 A fuse available rated at 600 V. Compared to other UL listed fuses, Class CC fuses are the most current limiting, rating for rating.

Littelfuse® POWR-GARD® Time Delay Fuse, Series: CCMR, Non-Indicating, 5 A, 600 VAC/250 VDC, 20/200 kA Interrupt, Class: CC, 50/60 Hz Frequency, Ferrule Terminal, Holder Mounting, Cartridge Body, Dual Element, 0.41 in Dia x 1.5 in L Body

Application

Motor and Motor Branch Circuit Protection Applications

Standards

UL 248-4 | E81895 | CSA LR29862 | CE Certified | PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer

Features

POWR-PRO™ performance
Extremely current limiting
300 kA interrupting rating (self-certified)

Specifications

Amperage Rating:	5 A
Body Size:	0.41 in Dia x 1.5 in L
Body Type:	Cartridge
Class:	CC
Country of Origin:	MX
Element:	Dual
Frequency Rating:	50/60 Hz
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	20/200 kA
Mounting Type:	Holder
Series:	CCMR
Terminal Type:	Ferrule
Voltage Rating:	600 VAC/250 VDC
