CDP3445 BLD

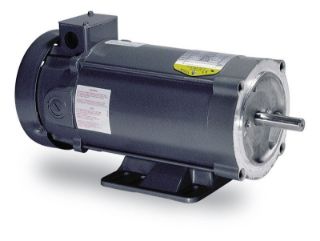

Picture of CDP3445 BLD
Actual Product May Vary From Image

Product Details

Manufacturer:
Baldor Reliance
Manufacturer part number:
CDP3445
product.name:
CDP3445 BLD
CBT Inventory
0
Vendor Inventory
Loading...
Availability:
Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
$1,270.81 / EA

Description

Brand Name

Baldor-Reliance

Type

DC Motors

Standards

CE; CSA; UR

Features

1HP,1750RPM,DC,56C,3435P,TEFC,F1

Specifications

Ambient Temp:40 °C
Armature Current:10.0 A
Armature Inertia:13.657
Armature Voltage:90
Base:Rigid
Bearing:6203
Bearing ODE:6203
Commutators:2/BP5000BK08
Country of Origin:US
Duty:Continuous
Enclosure:TEFC
Frame:56C
Horsepower:1
Mounting:F1
Number of Wires:2 @ 14 AWG, A
Rotation:Reversible
Service Factor:1
Shaft Size:0.625 in
Speed Rating:1,750

Resources

Spec SheetWarranty

Products Specifications

Brand Name
Baldor
Enclosure
TEFC
Frame
56C
Horsepower
1 HP
Speed Rating
1800 RPM
Type
Permanent Magnet DC Motor
Voltage
90

Customers who bought this item also bought

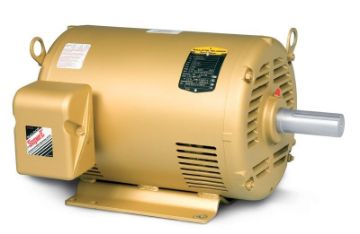

Picture of EM3311T BLD
