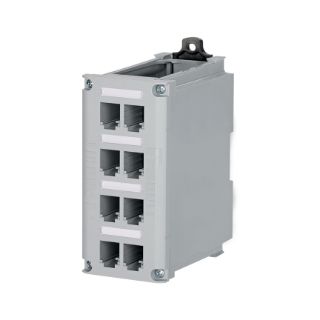

Actual Product May Vary From Image

CDPP8RG PAN

Name: CDPP8RG PAN
Brand: Panduit
SKU: CDPP8RG PAN
Price: 150.32 USD
Availability: InStock

Panduit® CDPP8RG DIN Rail Mount Unshielded Patch Panel, (8) Ports

Manufacturer: Panduit

Manufacturer part number: CDPP8RG

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
4	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$150.32

Qty:

Product Details

Brand Name

Panduit®

Type

DIN Rail Mount

Description

8-port DIN-rail mount copper patch panel shall be made of high impact polycarbonate material and shall mount to a standard 35 mm DIN-rail. Product shall have a removable faceplate that includes four label pockets, labels and covers for port identification. The product shall include adjustable latches to lock It in place when mounted on the DIN-rail. Latch design shall also allow product to mount on a flat surface for vertical bulkhead mounting. 8-port DIN-rail mount patch panel shall accept any Mini-Com® module that occupies a single space. The panel shall be suitable for use in shielded or unshielded applications.

Panduit®, CDPP8RG, Patch Panel, DIN Rail Mount Unshielded, 8 Ports, 67.31 mm W x 116.84 mm D Size, Polycarbonate, Rock Gray

Application

For shielded or unshielded applications

Standards

ARRA Compliant | BS 5584/1978 | Buy American Act Compliant | CEI 60715 | cULus Listed | DIN 46277-3 | DIN EN 60715/50022 | IEC 60068 | IEC 60715 | RoHS Compliant | UL File No. 1863 | UL94 V-0 Flammability Rated

Features

IndustrialNet 8-port DIN-rail mount copper patch panel
Mounting latches securely mount unit to standard DIN-rail in industrial applications
Can also mount to other surfaces using mounting holes in latches
Includes screws to attach faceplate and ultimate id labels and clear label covers
UTP, STP, A/V connection, accepts up to eight single Mini-Com® copper and A/V modules
UL94 V-0, impact-resistant polycarbonate material
Mounts to a standard 35 mm DIN-rail, can also mount to other surfaces using mounting holes in latches
Copper patch panel includes 6-32 x 3/8 in phillips head screws to mount faceplate to patch panel and 4 labels and label covers
Temperature range of -10 to 60 deg C (14 to 140 deg F) complies to UL 508 a control panel standard and operating range of the EtherNet switches
Employs dual purpose, snap-in mounting latches which have an audible click to indicate the latch is in the correct position
The latches serve to hold the unit on the DIN-rail while allowing It to slide side to side, latches also serve as wall mounting brackets via an external mounting hole in the latch
Easy and logical port mapping to common EtherNet mini-switch ports enables convenient MACs (moves, adds and changes) in industrial telecommunications zone enclosure or control panel applications
IndustrialNet 8-port DIN-rail mount patching solutions provides a testable permanent link for link commissioning and troubleshooting and provides flexibility and scalability for future growth
DIN-rail mount patching solutions include label pockets, labels and transparent label covers for clear identification, complies with ANSI/EIA/TIA-606-B labeling requirements

Includes

Screw

Specifications

Color:	Rock Gray
Country of Origin:	US
Material:	Polycarbonate
Number of Ports:	8
Size:	2.65 in W x 4.6 in D x 5.92 in H
