CECP3661T BLD

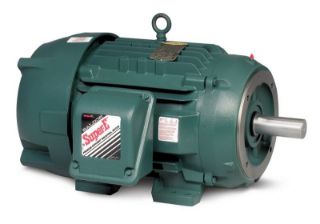

Picture of CECP3661T BLD
Actual Product May Vary From Image

Product Details

Manufacturer:
Baldor Reliance
Manufacturer part number:
CECP3661T
CBT Inventory
0
Vendor Inventory
Loading...
CBT - Cincinnati
0
CBT - Springboro
0
CBT - Sidney
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
$1,902.78 / EA

Description

Brand Name

Baldor-Reliance

Type

AC Motors

Application

Chemical Processing (Not Dc)

Features

3HP,1755RPM,3PH,60HZ,182TC,0632M,TEFC,F1

Specifications

Base:Rigid
Country of Origin:US
Duty:Continuous
Enclosure:TEFC
Frame:182
Frequency Rating:60 Hz
Full Load Current:8.2 A; 4.1 A; 8.6 A
Horsepower:3.000 hp
Insulation Class:F
Mounting:F1
NEMA Design:B
NEMA Nominal Efficincy:89.50%
Phase:Three Phase
Power Factor:77
Rotation:Reversible
Service Factor:1.15
Speed Rating:1,755 rpm
Sub Brand:Super-E
Voltage Rating:460 V; 230 V; 208 V

Resources

Spec SheetWarranty

Products Specifications

Application
Severe Duty
Brand Name
Baldor
Enclosure
TEFC
Frame
182TC
Frequency Rating
60 Hz
Horsepower
3 HP
Speed Rating
1800 RPM
Type
Severe Duty Motor
Voltage Rating
208-230/460
