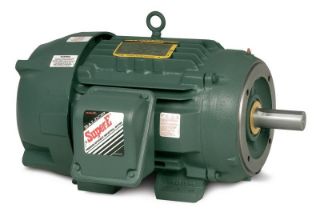

Picture of CECP83661T-4 BLD

Actual Product May Vary From Image

CECP83661T-4 BLD

3HP,1755RPM,3PH,60HZ,182TC,0632M,TEFC,F1

Manufacturer: Baldor Reliance

Manufacturer part number: CECP83661T-4

Availability: Ships in 1-3 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$2,078.10

Qty:

Product Details

Brand Name

Baldor-Reliance

Type

AC Motors

Application

Super E Chemical Processing

Features

3HP,1755RPM,3PH,60HZ,182TC,0632M,TEFC,F1

Specifications

Base:	Rigid
Country of Origin:	US
Duty:	Continuous
Enclosure:	TEFC
Frame:	182
Frequency Rating:	60 Hz
Full Load Current:	4.1 A
Horsepower:	3.000 hp
Insulation Class:	F
Mounting:	F1
NEMA Design:	B
NEMA Nominal Efficincy:	89.50%
Phase:	Three Phase
Power Factor:	77
Rotation:	Reversible
Service Factor:	1.15
Speed Rating:	1,755 rpm
Sub Brand:	Super-E
Voltage Rating:	460 V

Resources

Spec Sheet Warranty

Customers who bought this item also bought

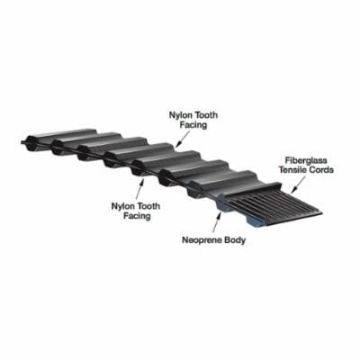

Picture of TP420L050 GAT
