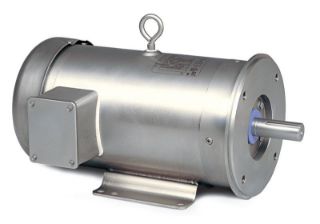

Picture of CESSWDM23994T BLD
Actual Product May Vary From Image

CESSWDM23994T BLD

15HP,3520RPM,3PH,60HZ,254TC,3952M,TEFC,F
Manufacturer: Baldor Reliance
Manufacturer part number: CESSWDM23994T
Availability: Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CBT - LOUISVILLE
0 0
Loading...
$8,022.81

Product Details

Brand Name

Baldor-Reliance

Type

AC Motors

Application

Wash Down All Stainless Steel

Features

15HP,3520RPM,3PH,60HZ,254TC,3952M,TEFC,F

Specifications

Base:Rigid
Country of Origin:US
Duty:Continuous
Enclosure:TEFC
Frame:254
Frequency Rating:60 Hz
Full Load Current:33.0 A; 16.5 A; 36.0 A
Horsepower:15.000 hp
Insulation Class:F
Mounting:F1
NEMA Design:B
NEMA Nominal Efficincy:91.00%
Phase:Three Phase
Power Factor:92
Rotation:Reversible
Service Factor:1.15
Speed Rating:3,520 rpm
Sub Brand:Super-E
Voltage Rating:460 V; 230 V; 208 V

Resources

Spec SheetWarranty
