Picture of CESSWDM3555T BLD

Actual Product May Vary From Image

CESSWDM3555T BLD

2HP,3500RPM,3PH,60HZ,145TC,3535M,TEFC,F1

Manufacturer: Baldor Reliance

Manufacturer part number: CESSWDM3555T

Availability: Ships in 1-3 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CBT - LOUISVILLE
0	0
Loading...

$2,192.30

Qty:

Product Details

Brand Name

Baldor-Reliance

Type

AC Motors

Application

Wash Down All Stainless Steel

Features

2HP,3500RPM,3PH,60HZ,145TC,3535M,TEFC,F1

Specifications

Base:	Rigid
Country of Origin:	US
Duty:	Continuous
Enclosure:	TEFC
Frame:	145
Frequency Rating:	60 Hz
Full Load Current:	2.5 A; 5.0 A; 5.4 A
Horsepower:	2.000 hp
Insulation Class:	F
Mounting:	F1
NEMA Design:	B
NEMA Nominal Efficincy:	86.50%
Phase:	Three Phase
Power Factor:	9
Rotation:	Reversible
Service Factor:	1.15
Speed Rating:	3,500 rpm
Sub Brand:	Super-E
Voltage Rating:	460 V; 230 V; 208 V

Resources

Spec Sheet Warranty

Product Tags

ABB Food Safe Motors (152)

Customers who bought this item also bought

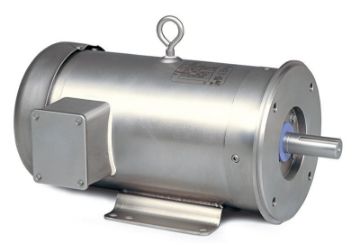

Picture of CESSWDM3613T BLD

CESSWDM3613T BLD

MFG: Baldor Reliance

MFG#:CESSWDM3613T

Info:5HP,3480RPM,3PH,60HZ,184TC,3636M,TEFC,F1

$ -.--

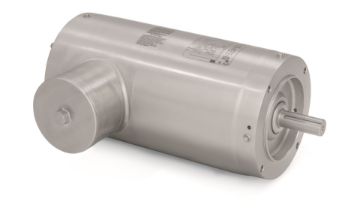

Picture of VFSWDM3558T-E BLD
