CESSWDM3710T BLD

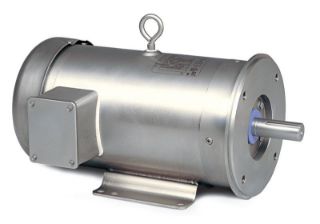

Picture of CESSWDM3710T BLD
Actual Product May Vary From Image

Product Details

Manufacturer:
Baldor Reliance
Manufacturer part number:
CESSWDM3710T
product.name:
CESSWDM3710T BLD
CBT Inventory
0
Vendor Inventory
Loading...
CBT - Cincinnati
0
CBT - Springboro
0
CBT - Sidney
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
$3,632.84 / EA

Description

Brand Name

Baldor-Reliance

Type

AC Motors

Application

Wash Down All Stainless Steel

Features

7.5HP,1770RPM,3PH,60HZ,213TC,3739M,TEFC

Specifications

Base:Rigid
Country of Origin:US
Duty:Continuous
Enclosure:TEFC
Frame:213
Frequency Rating:60 Hz
Full Load Current:19.0 A; 9.5 A
Horsepower:7.500 hp
Insulation Class:F
Mounting:F1
NEMA Design:A
NEMA Nominal Efficincy:91.70%
Phase:Three Phase
Power Factor:81
Rotation:Reversible
Service Factor:1.15
Speed Rating:1,770 rpm
Sub Brand:Super-E
Voltage Rating:230 V; 460 V

Resources

Spec SheetWarranty

Products Specifications

Application
Washdown
Brand Name
Baldor-Reliance
Enclosure
TEFC
Frame
213TC
Frequency Rating
60 Hz
Horsepower
7 1/2 HP
Speed Rating
1800 RPM
Type
Stainless Wash Down Motor
Voltage Rating
230/460
