CESSWDM3714T BLD

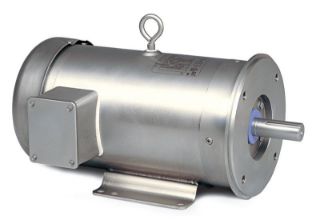

Picture of CESSWDM3714T BLD
Actual Product May Vary From Image

Product Details

Manufacturer:
Baldor Reliance
Manufacturer part number:
CESSWDM3714T
product.name:
CESSWDM3714T BLD
CBT Inventory
0
Vendor Inventory
Loading...
CBT - Cincinnati
0
CBT - Springboro
0
CBT - Sidney
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
$4,006.80 / EA

Description

Brand Name

Baldor-Reliance

Type

AC Motors

Application

Wash Down All Stainless Steel

Features

10HP,1770RPM,3PH,60HZ,215TC,3756M,TEFC,F

Specifications

Base:Rigid
Country of Origin:US
Duty:Continuous
Enclosure:TEFC
Frame:215
Frequency Rating:60 Hz
Full Load Current:12.5 A; 25.0 A
Horsepower:10.000 hp
Insulation Class:F
Mounting:F1
NEMA Design:B
NEMA Nominal Efficincy:92.40%
Phase:Three Phase
Power Factor:81
Rotation:Reversible
Service Factor:1.15
Speed Rating:1,770 rpm
Sub Brand:Super-E
Voltage Rating:460 V; 230 V

Resources

Spec SheetWarranty

Products Specifications

Application
Washdown
Brand Name
Baldor-Reliance
Enclosure
TEFC
Frame
215TC
Frequency Rating
60 Hz
Horsepower
10 HP
Speed Rating
1800 RPM
Type
Stainless Wash Down Motor
Voltage Rating
230/460
