CG610SST HWD

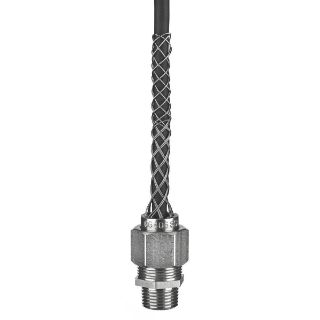

Picture of CG610SST HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
CG610SST
CBT Inventory
4
Vendor Inventory
Loading...
CBT - CINCINNATI
4
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
4 in stock
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$371.81 / EA

Description

Brand Name

Wiring Device-Kellems

Type

Form 2 Standard Straight

Description

Deluxe cord grips help to alleviate pull tension on terminals, control cable arc of bend, prevent cord pull out and provide a liquidtight seal. They are offered with either aluminum, stainless steel or nylon fittings in a variety of configurations and NPT thread sizes. Additionally, a completely non-metallic product is available.
Wiring Device-Kellems, CG610SST, Deluxe Cord Grip, Form 2 Standard Straight, 3/4 in Trade, 1 Conductors, Cable Openings: 1/2 to 5/8 in, Jacketed Cable, MNPT Straight Connection, Stainless Steel, Metallic, -30 to 225 deg F, 1.59 in Dia Dimensions

Application

Wiring Enclosures, Pendant Stations, Hand Tools, Construction, Processing and Material Handling Equipment, Pumps, Motors, Machine Tool and Wet Location Applications

Standards

CSA Certified | Hazardous Location per, Class I, Division 2, Class II, Division 1/2, Class III, Division 1/2 | RoHS Compliant | UL 898D/899D | UL 94 V-2 Flammability Rating

Features

  • Provides a liquidtight seal
  • Corrosion resistant stainless steel mesh with aluminum collar
  • An NPT and PG threaded body allows easy attachment to either threaded hub or knockout in box
  • 1.094 to 1.141 in recommended knockout hole
  • 0.56 in L thread
  • 0.81 in Dia throat
  • 1.44 in H throat across corner
  • 3/4-14 tapered thread
  • For insulated cables
  • Neoprene bushing is oil and watertight
  • Controls cable arc of bend
  • Prevents liquids from running through the fitting into the enclosure
  • Helps to prevent cable pull-outs

Specifications

Cable Openings:1/2 to 5/8 in
Cable Type:Jacketed
Color:Metallic
Connection Type:MNPT Straight
Country of Origin:US
Dimensions:1.59 in Dia
Material:Stainless Steel
Number of Conductors:1
Temperature Rating:-30 to 225 deg F
Trade Size:3/4 in
