CH30J2I BSF

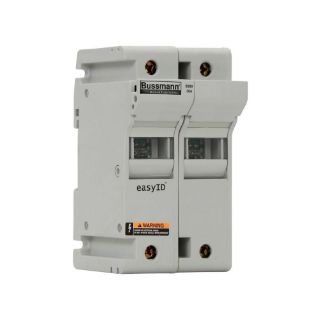

Picture of CH30J2I BSF
Actual Product May Vary From Image

Product Details

Manufacturer:
Bussmann
Manufacturer part number:
CH30J2I
CBT Inventory
2
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
2
CBT - LEXINGTON
0
Availability:
2 in stock
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$427.21 / EA

Description

Brand Name

Bussmann

Type

Finger Safe Modular

Description

Eaton's Bussmann series power distribution fuse blocks (PDFB) combine a fuse block and power distribution block into one component. This patented design simplifies your panel layout and uses up to 65% less panel space. Additionally, it lowers inventory costs while reducing installation time and labor by 33%. Bussmann series PDFBs are available for Class J ferrule and knifeblade fuses. PDFBs up to 60 amps feature DIN-Rail and panel mount versatility for ease of installation. Additionally, PDFBs use fewer wire connections, reducing watts loss and overall operating temperature of the panel
Bussmann Fuse Holder, Modular Padlockable, Series: CH Series, 600 VAC/VDC, 30 A, 2 Pole, 3, Class: J, 18 to 1 AWG Wire, DIN Rail/Panel Mount, -20 to 85 deg C, For Use With: Indicating Fuse, Thermoplastic/Tin Plated Copper, White, 2.56 in L x 2.83 in W x 4.59 in H

Application

Electrical Assemblies, Panels and EOEMs Applications

Standards

CE Certified | CSA C22.2 No. 39/6225-01/File No. LR47235 | IEC 60529 | RoHS Compliant | UL 512/File No. E14853/Guide IZLT | UL 94-V-0 Flammability Rating

Features

  • 3 ph fuse extraction assures all phases are opened for service work
  • 18 to 1 AWG single, 18 to 3 AWG dual at 75 deg C copper solid/stranded wire
  • Improved electrical safety with IP20 finger safe construction with lockout or tagout feature
  • Tin plated copper clip
  • 35 mm DIN rail and panel (#6-32 UNC pan head recommended) mounting

Specifications

Amperage Rating:30 A
Class:J
Color:White
Connection Type:Box Lug
Country of Origin:CN
Dimensions:2.56 in L x 2.83 in W x 4.59 in H
Fuse Diameter:0.81 in
Fuse Length:2-1/4 in
Material:Copper/Thermoplastic
Mounting Type:DIN Rail/Panel
Number of Phases:3
Number of Poles:2
Series:CH
Suitable For Use With:Indicating Fuse
Temperature Rating:-20 to 85 deg C
Voltage Rating:600 VAC/VDC
Wire Size:18 to 1 AWG
