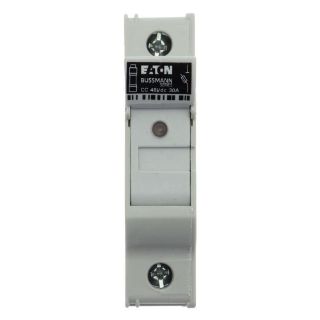

CHCC1DI-48U BSF

EATON Bussmann series CH DIN rail fuse holders are for UL class CC, supplemental fuses and IEC 10 x 38 mm fuses. They are available with and without indication in 1, 2, 3-pole IP20 finger safe versions. A variety of accessories extends their application flexibility and they may be ganged together to meet specific application requirements.

Bussmann Fuse Holder, Finger Safe Modular, Series: CH Series, 48 VDC, 30 A, 1 Pole, 1/3, Class: CC, Spade Lug, 18 to 4 AWG Wire, DIN Rail Mount, 38 mm Fuse Length, 10 mm Fuse Dia, -20 to 90 deg C, For Use With: KTK-R/LP-CC/FNQ-R Series CC Fuse, Polyester, 0.689 in W x 3.275 in D x 2.909 in H
