Actual Product May Vary From Image

CHCC3DIU BSF

Name: CHCC3DIU BSF
Brand: Bussmann
SKU: CHCC3DIU BSF
Price: 379.36 USD
Availability: OutOfStock

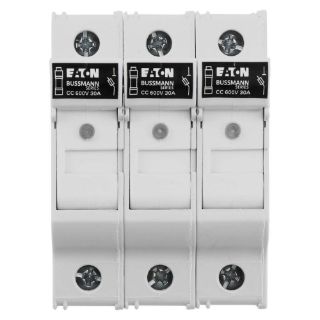

Bussmann CHCC3DIU Finger Safe Modular Fuse Holder With Indicator, 600 V, 30 A, 18 to 4 AWG Wire, 3 Poles

Manufacturer: Bussmann

Manufacturer part number: CHCC3DIU

Availability: Expected Leadtime 71 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

$379.36

Qty:

Product Details

Brand Name

Bussmann

Type

Finger Safe Modular

Description

EATON Bussmann series CH DIN rail fuse holders are for UL class CC, supplemental fuses and IEC 10 x 38 mm fuses. They are available with and without indication in 1, 2, 3-pole IP20 finger safe versions. A variety of accessories extends their application flexibility and they may be ganged together to meet specific application requirements.

Bussmann Fuse Holder, Finger Safe Modular, Series: CH Series, 600 V, 30 A, 3 Pole, 1/3, Class: CC, Fuse Holder Code: W, Spade Lug, 18 to 4 AWG Wire, DIN Rail Mount, 38 mm Fuse Length, 10 mm Fuse Dia, -20 to 90 deg C, For Use With: KTK-R/LP-CC/FNQ-R Series CC Fuse, Polyester, White, 2.067 in W x 3.275 in D x 2.909 in H

Application

Electrical Assemblies, Electrical System Applications, Panels and OEMs

Standards

CCC Certified | CSA 47235 | CSA 6225-01 | RoHS Compliant | UL E14853 | UL Guide IZLT/IZLT2

Features

Easy color coding for use yellow for PV, red for IEC and black for UL applications
Agency ratings up to 1000 VDC for use with solar PV fuses
Rated for use with 75 deg C or 90 deg C wire, fine stranded wire, spade terminals and combination busbars
Use any higher temperature rated wire with appropriate derating
Complete range of UL listed and high SCCR rated 1/3 ph finger safe combination busbars and power feed lugs
Enhanced safety with IP20 finger safe construction

Specifications

Amperage Rating:	30 A
Class:	CC
Color:	White
Connection Type:	Spade Lug
Country of Origin:	CN
Dimensions:	2.067 in W x 3.275 in D x 2.909 in H
Fuse Diameter:	10 mm
Fuse Holder Code:	W
Fuse Length:	38 mm
Material:	Polyester
Mounting Type:	DIN Rail
Number of Phases:	1/3
Number of Poles:	3
Series:	CH Series
Suitable For Use With:	KTK-R, LP-CC and FNQ-R Series CC Fuse
Temperature Rating:	-20 to 90 deg C
Voltage Rating:	600 VDC
Wire Size:	18 to 4 AWG

Resources

Video
