Home / CHM1DIU BSF

CHM1DIU BSF

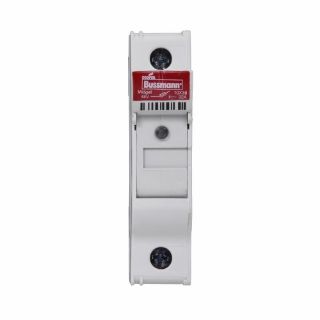

Picture of CHM1DIU BSF
Actual Product May Vary From Image

Product Details

Manufacturer:
Bussmann
Manufacturer part number:
CHM1DIU
CBT Inventory
27
Vendor Inventory
Loading...
CBT - Cincinnati
0
CBT - Springboro
0
CBT - Sidney
27
CBT - LEXINGTON
0
Availability:
27 in stock
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$101.18 / EA

Description

Brand Name

Bussmann

Type

Finger Safe Modular

Description

EATON Bussmann series CH DIN rail fuse holders are for UL class CC, supplemental fuses and IEC 10 x 38 mm fuses. They are available with and without indication in 1, 2, 3-pole IP20 finger safe versions. A variety of accessories extends their application flexibility and they may be ganged together to meet specific application requirements.
Bussmann Fuse Holder, Finger Safe Modular, Series: CH Series, 600/690 V, 30/32 A, 1 Pole, 1/3, Class: CC/Midget, Spade Lug, 18 to 4 AWG Wire, DIN Rail Mount, 38 mm Fuse Length, 10 mm Fuse Dia, -20 to 90 deg C, For Use With: FNQ/KLM/FNM/KTK/BAF/FWA/PVM/C10/AGU/BAN/FWC Series Midget Fuse, Polyester, White, 0.689 in W x 3.275 in D x 2.909 in H

Application

Electrical Assemblies, Electrical System Applications, Panels and OEMs

Standards

CCC Certified | CSA Certified | IEC 60269-2 | RoHS Compliant | UL 94-V-0 Flammability Rating | UL Listed | UL Recognized

Features

  • Easy color coding for use yellow for PV, red for IEC and black for UL applications
  • Agency ratings up to 1000 VDC for use with solar PV fuses
  • Rated for use with 75 deg C or 90 deg C wire, fine stranded wire, spade terminals and combination busbars
  • Use any higher temperature rated wire with appropriate derating
  • Complete range of UL listed and high SCCR rated 1/3 ph finger safe combination busbars and power feed lugs
  • Enhanced safety with IP20 finger safe construction

Specifications

Amperage Rating:30/32 A
Class:CC/Midget
Color:White
Connection Type:Spade Lug
Country of Origin:CN
Dimensions:0.689 in W x 3.275 in D x 2.909 in H
Fuse Diameter:10 mm
Fuse Length:38 mm
Material:Polyester
Mounting Type:DIN Rail
Number of Phases:1/3
Number of Poles:1
Series:CH Series
Suitable For Use With:AGU/C10G/C10M/BAF/BAN/FNM/FNQ/FWA/FWC/KLM/KTK/CHM Fuse
Temperature Rating:-20 to 90 deg C
Voltage Rating:600/690 V
Wire Size:18 to 4 AWG
