CJ 24A HUB PM 3/4 3/16X3/32KW LOV

Name: CJ 24A HUB PM 3/4 3/16X3/32KW LOV
Brand: Lovejoy
SKU: CJ 24A HUB PM 3/4 3/16X3/32KW LOV
Price: 40.87 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Lovejoy

Manufacturer part number:

68514476365

CBT Inventory

Vendor Inventory

Availability:

Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

$40.87 / EA

Description

Brand Name

Lovejoy®

Type

Style A

Description

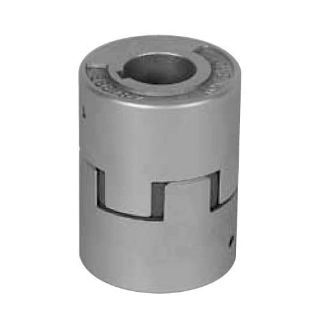

Lovejoy® Curved Jaw Coupling Hub, Style A, Series: CJ Series, 24 Coupling, 3/4 in Bore, 1.57 in Diameter Hub, 3/16 in W x 3/32 in D Keyway, 10600 rpm Maximum, 1.18 in Length Through Bore, 10-24 Screw, Powdered Metal, Metallic

Standards

ECCN EAR99

Features

Three-piece design that is easy to assemble
The curved jaw design incorporates both radial and axial curvature (crowning) to the elastomer (spider)
Hubs are offered in sintered iron, steel, aluminum, cast iron and nodular iron materials
No metal to metal contact and no lubrication required
Fail safe design due to the jaw in compression design (continues to function after the elastomer fails)
The CJ series covers a torque range of 67 to 247800 in-lb

Specifications

Bore Diameter:	3/4 in
Country of Origin:	US
Coupling Size:	24
Finish:	Metallic
Hub Diameter:	1.57 in
Keyway Size:	3/16 in W x 3/32 in D
Length Through Bore:	1.18 in
Material:	Powdered Metal
Maximum Speed:	10600 rpm
Screw Size:	10-24
Series:	CJ Series
