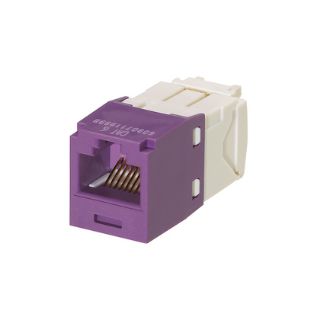

Actual Product May Vary From Image

CJ688TGVL PAN

Name: CJ688TGVL PAN
Brand: Panduit
SKU: CJ688TGVL PAN
Price: 18.06 USD
Availability: InStock

Panduit® CJ688TGVL 1-Slot 8-Position 8-Wire TG Style Universal Unshielded UTP Jack Module, Cat 6 RJ45/Mini-Com® Module, Faceplate/Panel Mounting, (1) Ports, ABS/Polycarbonate, Violet

Manufacturer: Panduit

Manufacturer part number: CJ688TGVL

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
6	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$18.06

Qty:

Product Details

Brand Name

Panduit®

Type

1-Slot 8-Position 8-Wire TG Style Universal Unshielded

Description

Cat 6/class E, 8-position, UTP jack module shall terminate 4-pair, 26 to 22 AWG, 100 Ohm unshielded twisted pair cable and shall not require use of a punch down tool. UTP jack modules shall use a forward motion termination method to optimize performance by maintaining cable pair geometry while eliminating conductor untwist. The termination cap shall be color-coded white to designate Cat 6 performance and shall include a universal label coded for T568A and T568B wiring schemes.

Panduit®, CJ688TGVL, UTP Jack Module, 1-Slot 8-Position 8-Wire TG Style Universal Unshielded, Cat 6 RJ45/Mini-Com® Module, Faceplate/Panel Mounting, 1 Ports, ABS/Polycarbonate, Violet, 1.5 in L x 0.62 in W x 0.71 in H Dimensions

Application

10BASE-T (Ethernet), 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), 155 Mbps ATM, 622 Mbps ATM, 1.2 Gbps ATM, Token Ring 4/16, Digital Video, Broadband/Baseband Analog Video and Voice Over Internet Protocol Applications

Standards

Features

100% performance tested
Utilizes enhanced Giga-TX™ technology
UTP jack modules snap-in and out of all Mini-Com® faceplates, modular patch panels and surface mount boxes for easy moves, adds and changes
Individually serialized, marked with quality control number for future traceability
Industry standard interface provides a quick and easy plug and play connection to RJ45 patch cords and backwards compatible
Can be clearly identified with optional labels and icons for port identification
Plastic wire cap and plastic strain relief clip

Specifications

Color:	Violet
Dimensions:	0.62 in W x 1.5 in D x 0.71 in H
Material:	ABS/Polycarbonate
Module Type:	Cat 6 RJ45/Mini-Com®
Mounting Type:	Faceplate/Panel
Number of Ports:	1
