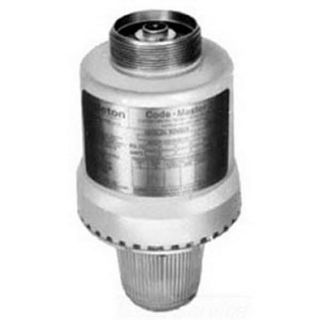

Actual Product May Vary From Image

CJB100HMT APN

Name: CJB100HMT APN
Brand: Appleton
SKU: CJB100HMT APN
Availability: OutOfStock

Appleton® Code Master Jr. CJB100H-MT Factory Sealed Explosionproof HID Luminaire With Globe, (1) HID Metal Halide Lamp, 120/208/240/277 VAC, Epoxy Powder Coated Housing

Manufacturer: Appleton

Manufacturer part number: CJB100H-MT

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Appleton®

Type

Factory Sealed

Description

Light fixtures that work flawlessly and stand up to harsh conditions go unnoticed everyday, which is exactly the point. Appleton luminaires are designed to withstand the harshest conditions and operate across your facility without incident. A century of innovation and testing makes sure of that. From area to task, flood to emergency, we have a light fixture perfectly suited for every task and use in environments that are hazardous, adverse or ordinary. After all, our vast collection of fixtures is unsurpassed in the industry. Appleton has expanded the boundaries of technology, efficiency and performance to ensure your lights stays on, because failure is not an option.

Appleton® Code Master Jr. Explosionproof HID Luminaire, Factory Sealed, Series: CJ Series, 120/208/240/277 VAC, 2/1.16/1/1 A Starting/1.66/0.96/0.83/0.83 A Operating, HID Metal Halide Lamp, 100 W Lamp, Medium Lamp Base, 1 Lamp, HPF/Multi-Tap Ballast, 8500 Lumens, NEMA 4X Enclosure, Bracket Mounting, Aluminum Housing Material, Epoxy Powder Coated Housing Finish, 16 in W Dimensions

Application

Used in chemical and petrochemical plants, such as manufacturers of plastics, paints and thinners in refineries and in other process areas where ignitable vapors, dust, moisture, marine and corrosive elements may be present, wet locations

Standards

UL 1598/844/E10444 | CSA C22.2 No. 250/137, CSA 025428 | NEC Compliant | CEC Class I Div 1 and 2, Groups B, C, D, Class II, Div 1 and 2, Groups E, F, G, Class III and CEC Type 4X, Exd IIB + H2

Features

Fixtures operate safely in high ambient temperatures
Arrangement of heat producing components results in more efficient heat dissipation for cooler fixture operation
Patented "wireless" design, threading of fixture unit onto mounting hood makes electrical connection, only wiring required is attaching two wires to connection block in mounting hood
Connection block is easily wired - loosen two screws, make wire connections and re-position connection block
Safe, easy servicing without disconnecting any wiring, wireless fixture unit easily threads off mounting hood for convenient servicing or for immediate replacement with a stand by unit
ACME double-lead threads speed installation and fixture removal from mounting hood - only half as many turns are required as for single lead threads
The threads do not stick or gall, eliminating problems often encountered with single lead threads during fixture unit removal
All threaded joints are flame-tight
Factory sealed, external seals not required for Groups C and D
Heat- and impact-resistant globes have smooth dust-resistant exterior
Superior corrosion resistance, with epoxy powder coat finish
Shock-absorbing medium base socket mounts prolong lamp life and porcelain socket with nickel plated phosphor bronze screw shell
Strategic location of lamp socket, in combination with interior prism design of the glass globe, provides optimum light distribution and control
Optional guards protect globes from damage, secured to fixture with three stainless steel screws
PSMH and MH are desirable where colors in illuminated areas must be close to natural
Copperfree (4/10 of 1% max) aluminum ballast bodies and guards
Sand cast copperfree (4/10 of 1% max) aluminum bracket mounting hoods
Epoxy powder coat finish, electrostatically applied for complete, uniform corrosion protection ballast bodies, guards and mounting hoods
For use with threaded metal conduit
Integrally ballasted

Specifications

Amperage Rating:	2/1.16/1/1 A Starting/1.66/0.96/0.83/0.83 A Operating
Ballast Type:	HPF/Multi-Tap
Country of Origin:	MX
Dimensions:	16 in W
Enclosure Type:	NEMA 4X
Housing Finish:	Epoxy Powder Coated
Housing Material:	Aluminum
Lamp Base Type:	Medium
Lamp Type:	HID Metal Halide
Lamp Wattage:	100 W
Lumens:	8500 Lumens
Mounting Type:	Bracket
Number of Lamps:	1
Series:	CJ Series
Voltage Rating:	120/208/240/277 VAC
