Actual Product May Vary From Image

CJB100LMTR APN

Name: CJB100LMTR APN
Brand: Appleton
SKU: CJB100LMTR APN
Availability: OutOfStock

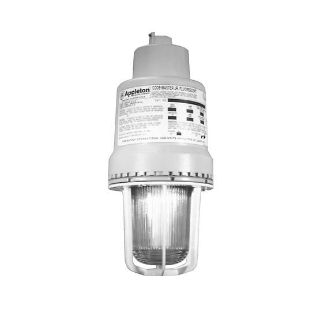

Appleton® Code Master™ Jr. CJB100LMTR HPF Multi-Tap Ballast Body With Globe and Hot Strike, Medium Base High Pressure Sodium Lamp, 100 W Lamp, 120/208/240/277 VAC

Manufacturer: Appleton

Manufacturer part number: CJB100LMTR

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Appleton®

Type

HPF Multi-Tap

Description

Appleton® Code Master™ Jr. Ballast Body, HPF Multi-Tap, Medium Base High Pressure Sodium Lamp, 100 W Lamp, 120/208/240/277 VAC, 1.3/0.76/0.66/0.6 A Starting, 1.15/0.67/0.58/0.5 A Operating, Hood Mounting, For Use With: Code Master™ Jr. HID Factory Sealed Luminaires, Copper Free Aluminum, Epoxy Powder Coated

Application

Chemical/Petrochemical Plants and Outdoor Saltwater Locations

Standards

CSA 025428 C22.2 File No.250/137 | UL File No. E10444 | UL 1598 | UL 844 | UL Listed for Class I, Div 1 and 2, Groups B, C, D, Class II, Div 1 and 2, Groups E, F, G, Class III, Type 4X, Exd IIB + H2

Specifications

Amperage Rating:	1.3/0.76/0.66/0.6 A Starting, 1.15/0.67/0.58/0.5 A Operating
Country of Origin:	MX
Finish:	Epoxy Powder Coated
Lamp Type:	Medium Base High Pressure Sodium
Lamp Wattage:	100 W
Material:	Copper Free Aluminum
Mounting Type:	Hood
Suitable For Use With:	Code Master™ Jr. HID Factory Sealed Luminaires
Voltage Rating:	120/208/240/277 VAC
