CJS5E88TGY PAN

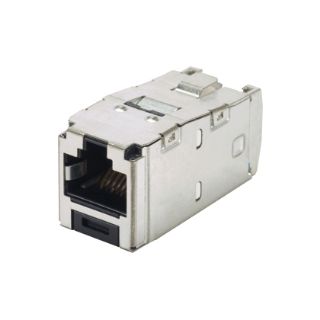

Picture of CJS5E88TGY PAN
Actual Product May Vary From Image

Product Details

Manufacturer:
Panduit
Manufacturer part number:
CJS5E88TGY
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$17.48 / EA

Description

Brand Name

Panduit®

Type

8-Position 8-Wire TG Style Class D Non-Keyed Standard Shielded Universal

Description

Cat 5e/Class D, eight-position, shielded jack module shall terminate four-pair, 26 to 22 AWG, 100 Ohm shielded twisted pair cable and shall not require use of a punch down tool. Shielded jack modules shall use a forward motion termination method to optimize performance by maintaining cable pair geometry while eliminating conductor untwist. The termination cap shall be color-coded red to designate Cat 5e performance and shall include a universal label coded for T568A and T568B wiring schemes.
Panduit®, CJS5E88TGY, Jack Module, 8-Position 8-Wire TG Style Shielded Universal, Cat 5e RJ45/Mini-Com® Module, Faceplate/Panel Mounting, 1 Ports, ABS/Tin Plated Over Phosphorous Bronze, Black, 1.5 in L x 0.62 in W x 0.74 in H Dimensions

Application

10BASE-T Ethernet, 100BASE-T Fast Ethernet, 1000BASE-T Gigabit Ethernet, 155 Mb/s ATM, 622 Mb/s ATM, Token Ring 4/16, Voice/Data Systems and Voice Over Internet Protocol Applications

Standards

ANSI/IEC 60529-2004 | ANSI/TIA 1096-A | ANSI/TIA 568-C.2 Cat 6 | ANSI/TIA-568-C.2 Category 5e | ARRA Compliant | Buy American Act Compliant | cUL Listed | IEC 60603-7 | IEC 60603-7 | IEEE 802.3af/802.3at | RoHS Compliant | T568A/T568B | UL Listed

Features

  • 100% performance tested
  • Utilizes enhanced Giga-TX™ technology
  • Improved termination cap conductor retention slots simplify jack module termination
  • Shielded jack module snap-in and out of all Mini-Com® faceplate, metal modular patch panel and surface mount boxes for easy moves, adds and changes
  • True strain relief controls cable bend radius for long term installed performance
  • Individually serialized marked with quality control number for future traceability
  • Industry standard interface provides a quick and easy plug and play connection to RJ45 patch cords and backwards compatible
  • Can be clearly identified with optional labels and icons for port identification
  • Tin-plated over phosphorous bronze shield, zinc wire cap, polycarbonate clip
  • Each module is 100% factory tested to exceed industry standard performance requirements
  • TG style termination eliminates the need for a termination tool
  • Each jack is individually serialized for traceability and is compatible with Mini-Com® shielded modular patch panel and faceplate
  • The Mini-Com® Cat 5e Shielded RJ45 TG jack module is designed to terminate four-pair, 26 to 22 AWG twisted pair cable

Includes

Termination Tool

Specifications

Color:Black
Country of Origin:CR
Dimensions:0.62 in W x 1.5 in D x 0.73 in H
Material:ABS/Tin Plated Over Phosphorous Bronze
Module Type:Cat 5e RJ45/Mini-Com®
Mounting Type:Faceplate/Panel
Number of Ports:1
