Actual Product May Vary From Image

CJS688TGY PAN

Name: CJS688TGY PAN
Brand: Panduit
SKU: CJS688TGY PAN
Price: 21.68 USD
Availability: InStock

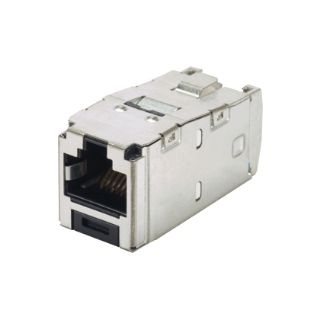

Panduit® CJS688TGY 1-Slot 8-Position 8-Wire TG Style Universal Shielded STP Jack Module, Cat 6 RJ45/Mini-Com® Module, Faceplate/Panel Mounting, (1) Ports, ABS/Plastic/Tin Plated Over Phosphorous Bronze, Black

Manufacturer: Panduit

Manufacturer part number: CJS688TGY

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
6	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$21.68

Qty:

Product Details

Brand Name

Panduit®

Type

1-Slot 8-Position 8-Wire TG Style Universal Shielded

Description

Cat 6/class E, 8-position, shielded jack module shall terminate 4-pair, 26 to 22 AWG, 100 Ohm shielded twisted pair cable and shall not require use of a punch down tool. Shielded jack modules shall use a forward motion termination method to optimize performance by maintaining cable pair geometry while eliminating conductor untwist. The termination cap shall be color-coded white to designate Cat 6 performance and shall include a universal label coded for T568A and T568B wiring schemes.

Panduit®, CJS688TGY, STP Jack Module, 1-Slot 8-Position 8-Wire TG Style Universal Shielded, Cat 6 RJ45/Mini-Com® Module, Faceplate/Panel Mounting, 1 Ports, ABS/Plastic/Tin Plated Over Phosphorous Bronze, Black, 1.5 in L x 0.62 in W x 0.74 in H Dimensions

Application

10BASE-T Ethernet, 100BASE-T Fast Ethernet, 1000BASE-T Gigabit Ethernet, 155 Mbps ATM, 622 Mbps ATM, 1.2 Gbps ATM, 4/16 Token Ring, Digital Video, Broadband/Baseband Analog Video and Voice Over Internet Protocol

Standards

Features

100% performance tested
Utilizes enhanced Giga-TX™ technology
Improved termination cap, conductor retention slots simplify jack module termination
Integral shield provides a 360 deg conductive path to ground shielded jack module with no additional assembly required
Snap-in grounding - shield provides seamless bonding of the jack module with Mini-Com® all metal modular patch panels
Shielded jack modules snap-in and out of all Mini-Com® faceplates, metal modular patch panels and surface mount boxes for easy moves, adds and changes
Individually serialized can be clearly identified with optional labels and icons for port identification
Can be clearly identified with optional labels and icons for port identification
Tin-plated over phosphorous bronze shield, plastic wire cap, polycarbonate clip

Specifications

Color:	Black
Country of Origin:	CR
Dimensions:	0.62 in W x 1.5 in D x 0.73 in H
Material:	ABS/Plastic/Tin Plated Over Phosphorous Bronze
Module Type:	Cat 6 RJ45/Mini-Com®
Mounting Type:	Faceplate/Panel
Number of Ports:	1
