CLNS-250-12 ILS

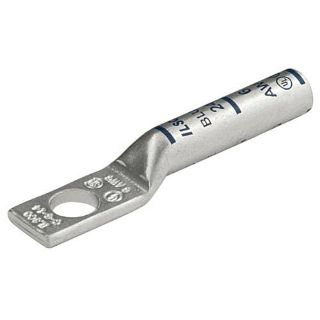

Picture of CLNS-250-12 ILS
Actual Product May Vary From Image

Product Details

Manufacturer:
Ilsco Corporation
Manufacturer part number:
CLNS-250-12
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$9.61 / EA

Description

Brand Name

ILSCO®

Type

1-Hole

Description

ILSCO® SureCrimp® Lug Compression Connector, 1-Hole, Series: CLNS, Solid/Flex Copper Conductor, 1/0 AWG to 250 kcmil Conductor, Die Code: ILD-62, 600 VAC to 35 kV VAC, 1/2 in Stud, 1.25 in L x 1.088 in W x 0.157 in THK Tongue, 3.469 in Overall Length, Chamfered/Long Barrel, 0.593 in ID x 0.75 in OD x 1.688 in L Barrel, 1-3/4 in L Wire Strip, 90 deg C, 0.562 in Mounting Hole, Tin Plated Copper, Yellow, 1.088 in W

Application

Terminating Connector Applications

Standards

NEBS Level 3 | UL 453G | UL 486A-486B File No. E6207 | UL 467 | CSA File No. LR29601 | ECCN EAR99

Features

  • Manufactured from high strength seamless copper tubing, electro-tin plated
  • Color coded
  • Offers maximum conductivity and excellent crimping characteristics
  • Provides low contact resistance
  • For easy conductor insertion
  • Identifies the proper compression die
  • Application versatility
  • Reduces inventory requirements
  • Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
  • 1 mounting hole
  • 4/0 flexible alternate conductor size
  • 1/0 AWG to 250 kcmil expanded conductor size
  • Without sight hole
  • Electro-tin plated
  • Long barrel length with chamfered entry
  • 8 AWG to 500 kcmil, 8 to 2 AWG solid

Specifications

Barrel Size:0.593 in ID x 0.75 in OD x 1.688 in L
Barrel Type:Chamfered/Long
Color:Yellow
Conductor Size:1/0 AWG to 250 kcmil
Conductor Type:Solid/Flex Copper
Country of Origin:US
Die Code:ILD-62
Dimensions:1.088 in W
Material:Tin Plated Copper
Mounting Hole Size:0.562 in
Overall Length:3.469 in
Series:CLNS
Specifications:1-3/4 in L Wire Strip
Stud Size:1/2 in
Temperature Rating:90 deg C
Tongue Size:1.25 in L x 1.088 in W x 0.157 in THK
Voltage Rating:600 VAC to 35 kV VAC
