CLWD-4/0-12-134 ILS

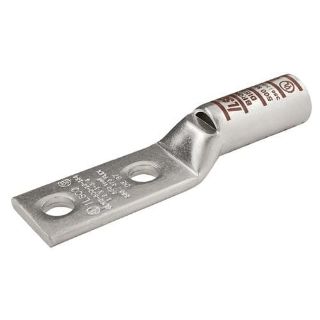

Picture of CLWD-4/0-12-134 ILS
Actual Product May Vary From Image

Product Details

Manufacturer:
Ilsco Corporation
Manufacturer part number:
CLWD-4/0-12-134
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$10.23 / EA

Description

Brand Name

ILSCO®

Type

2-Hole

Description

ILSCO® SureCrimp® Lug Compression Connector Sight Hole, 2-Hole, Series: CLWD, Flex Copper Conductor, 1 to 4/0 AWG Conductor, Die Code: ILD-54, 600 VAC to 35 kV VAC, 1/2 in Stud, 3 in L x 0.999 in W x 0.141 in THK Tongue, 4.991 in Overall Length, Chamfered/Long Barrel, 0.546 in ID x 0.687 in OD x 1.5 in L Barrel, 1-3/4 in Mounting Hole Spacing, 1.562 in L Wire Strip, 90 deg C, 0.562 in Mounting Hole, Tin Plated Copper, Purple, 0.999 in W

Application

Terminating Connector Applications

Standards

NEBS Level 3 | UL 453G | UL 486A-486B File No. E6207 | CSA File No. LR29601 | ECCN EAR99

Features

  • Manufactured from high strength seamless copper tubing, electro-tin plated
  • Color coded
  • Offers maximum conductivity and excellent crimping characteristics
  • Provides low contact resistance
  • For easy conductor insertion
  • Identifies the proper compression die
  • Application versatility
  • Reduces inventory requirements
  • Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
  • 3/0 AWG flexible alternate conductor size
  • 1 to 4/0 AWG expanded conductor size
  • Electro-tin plated
  • Long barrel length with chamfered entry
  • Chamfered barrel for visual inspection of proper cable insertion

Specifications

Barrel Size:0.546 in ID x 0.687 in OD x 1.5 in L
Barrel Type:Chamfered/Long
Color:Purple
Conductor Size:1 to 4/0 AWG
Conductor Type:Flex Copper
Country of Origin:US
Die Code:ILD-54
Dimensions:0.999 in W
Material:Tin Plated Copper
Mounting Hole Size:0.562 in
Overall Length:4.991 in
Series:CLWD
Specifications:1-3/4 in Mounting Hole Spacing, 1.562 in L Wire Strip
Stud Size:1/2 in
Temperature Rating:90 deg C
Tongue Size:3 in L x 0.999 in W x 0.141 in THK
Voltage Rating:600 VAC to 35 kV VAC
