CR15I HWD

Name: CR15I HWD
Brand: Hubbell Wiring Device-Kellems
SKU: CR15I HWD
Price: 1.71 USD
Availability: InStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Hubbell Wiring Device-Kellems

Manufacturer part number:

CR15I

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$1.71 / EA

This product has a minimum quantity of 10

Description

Brand Name

Wiring Device-Kellems

Type

1-Phase Duplex Grounding Heavy Duty Standard

Alternate Supplier #

Grainger - 6A670

Description

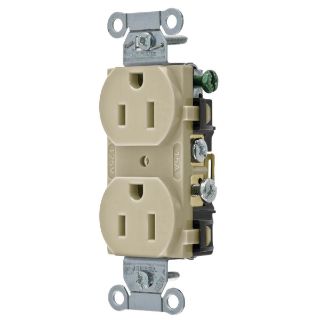

Wiring Device-Kellems Straight Blade Receptacle, 1-Phase Duplex Self-Grounding Standard Traditional Screw Mount, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, 5-15R NEMA Rating, Commercial/Specification Grade, -40 to 75 deg C, Side Wired Terminal, Nylon, Ivory, 1.32 x 0.83 x 3.28 in

Application

Dry Indoor Applications

Standards

RoHS Compliant | UL 498 File No. E2186 | NEMA WD1/WD5

Features

Side wired only wiring method
#8-32 brass terminal and ground screw
Nylon top and base material
0.031 in phosphor bronze contact material, 0.04 in galvanized steel mounting strap material, 0.032 in steel wire auto ground clip material, steel zinc plated mounting screw
Withstands 2000 VAC minimum dielectric voltage
Certified for current interrupting at full rated current
Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% rated current for either AC or DC applications per UL 498 temperature rise
Terminals identified in accordance with UL 498
14 to 12 AWG wire size

Specifications

Amperage Rating:	15 A
Color:	Ivory
Country of Origin:	CN
Dimensions:	1.32 x 0.83 x 3.28 in
Grade:	Commercial/Specification
Horsepower:	1/2 hp
Material:	Composite/Thermoplastic
NEMA Rating:	5-15R
Number of Poles:	2
Number of Wires:	3
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Back/Side Wire
Voltage Rating:	125 VAC
