CR20 HWD

Name: CR20 HWD
Brand: Hubbell Wiring Device-Kellems
SKU: CR20 HWD
Price: 2.07 USD
Availability: InStock

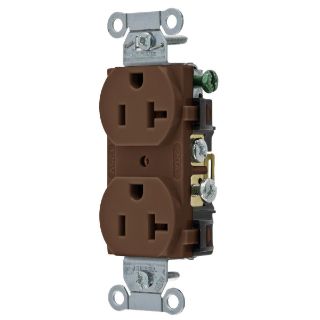

Actual Product May Vary From Image

Product Details

Manufacturer:

Hubbell Wiring Device-Kellems

Manufacturer part number:

CR20

CBT Inventory

Vendor Inventory

Availability:

9 in stock

Estimated dates are contingent upon manufacturer stock.

$2.07 / EA

Description

Brand Name

Wiring Device-Kellems

Type

1-Phase Duplex Grounding Standard

Alternate Supplier #

Grainger - 1XC04

Description

Wiring Device-Kellems Straight Blade Receptacle, 1-Phase Duplex Grounding Standard, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial/Specification Grade, -40 to 75 deg C, Back/Side Wire Terminal, Composite/Thermoplastic, Brown, 3.281 in H x 1.322 in W x 1.067 in D Dimensions

Standards

UL 498 File No. E2186 | CSA C22.2 No. 42 | NEMA WD1/WD5

Features

Withstands 2000 VAC minimum dielectric voltage
Certified for current interrupting at full rated current
Easy access split circuit tab
Triple wipe contact
Terminals identified in accordance with UL 498 and CSA terminal identification
Nylon base and top, 0.03 in brass contacts, brass ground contacts, 0.062 in nickel plated steel, plated steel terminal screw, 0.04 in galvanized steel mounting strap, stainless steel automatic self-grounding staple, galvanized steel mounting screw
Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% rated current for either AC or DC applications per UL 498 temperature rise
#8-32 brass multiple drive terminal screw
14 to 12 AWG wire size

Specifications

Amperage Rating:	20 A
Color:	Brown
Country of Origin:	CN
Dimensions:	1.32 x 0.83 x 3.28 in
Grade:	Commercial/Specification
Horsepower:	1 hp
Material:	Composite/Thermoplastic
NEMA Rating:	5-20R
Number of Poles:	2
Number of Wires:	3
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Back/Side Wire
Voltage Rating:	125 VAC
