CSD20026X35L4H MSG

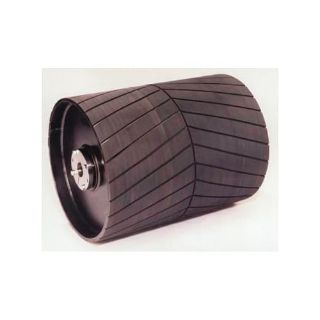

Martin CSD20026X35L4H Standard Duty Drum Pulley With Herringbone Lagging, 3-1/2 in Dia Shaft, 20 in OD, 26 in W Face, Steel
Manufacturer: Martin Sprocket & Gear
Manufacturer part number: CSD20026X35L4H
Availability: Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Martin

Type

Standard Duty

Description

Martin offers standard duty drum pulleys using a minimum 1/4 in rim, 3/8 in end discs and 1/4 in center discs. Each standard drum pulley features a two piece rolled rim, which has been fabricated on either of our flat or custom crowned roll machines. The rims are trimmed and hydraulically seated around the heavy end discs to ensure maximum concentricity. Once the pulley is formed, Martin utilizes a submerged arc weldment to ensure optimum connection of its individual components. Our trademark standard duty pulley is the heaviest off the shelf CEMA grade pulley in the industry. The thicker materials used in our standard duty pulleys yield longer life and better resistance to wear and stress that are present in every conveying application.
Martin Drum Pulley, Standard Duty, MXT35 Bushing, 20 in OD, 26 in Face Width, 3-1/2 in Shaft Diameter, Crown Face Profile, Steel

Standards

CEMA/NIBA Standards

Features

  • Manufactured in multiple locations from heavier than industry standard materials
  • Stock drum pulleys in dozens of Martin facilities, offering the finest inventory in the industry
  • Several hub/bushing systems
  • Double sub-arc weldments standard on all welded hub design pulleys, integral end disc design drum pulleys
  • 1/2 in thickness herringbone lagging style

Specifications

Bushing Type:MXT35
Country of Origin:US
Face Width:26 in
Material:Steel
Outside Diameter:20 in
Profile:Crown Face
Shaft Diameter:3-1/2 in
