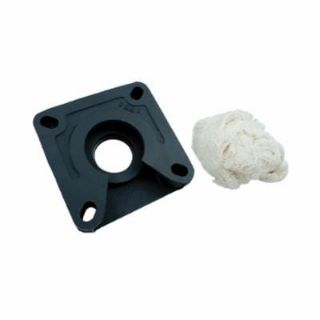

Martin CSW3 Waste Pack Seal, For Use With Flanged Ball, Roller or other Standard 4-Bolt Bearings, Cast Iron
Manufacturer: Martin Sprocket & Gear
Manufacturer part number: CSW3
Availability: Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$157.23

Product Details

Brand Name

Martin

Description

Waste pack seals prevent bulk material leaks, which reduces product loss, contamination and bearing failure. This type of seal is normally installed between the trough end and bearing, but may be used separately on pedestal type trough ends. It is furnished with waste packing or in combination with a lip seal, and designed with an opening at the top of the housing for repacking without removing the seal from the trough end. It is compatible with flanged ball, roller or other standard 4-bolt bearings.
Martin Waste Pack Seal, For Use With: Flanged Ball, Roller or other Standard 4-Bolt Bearings, 1-1/2 in Shaft Dia, 4 in Mounting Bolt Hole Center (Ball Bearing), 4-1/8 in Mounting Bolt Hole Center (Roller Bearing), 5-3/8 in Width and Height of Seal, 1-3/4 in Seal THK, Cast Iron, 5-3/8 in L x 5-3/8 in W

Specifications

Country of Origin:US
Dimensions:5-3/8 in L x 5-3/8 in W
Material:Cast Iron
Specifications:1-1/2 in Shaft Dia, 4 in Mounting Bolt Hole Center (Ball Bearing), 4-1/8 in Mounting Bolt Hole Center (Roller Bearing), 5-3/8 in Width and Height of Seal, 1-3/4 in Seal THK
Suitable For Use With:Flanged Ball, Roller or other Standard 4-Bolt Bearings
