CSWS-4/0-516 ILS

Name: CSWS-4/0-516 ILS
Brand: Ilsco Corporation
SKU: CSWS-4/0-516 ILS
Price: 8.36 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Ilsco Corporation

Manufacturer part number:

CSWS-4/0-516

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$8.36 / EA

Description

Brand Name

ILSCO®

Type

1-Hole

Description

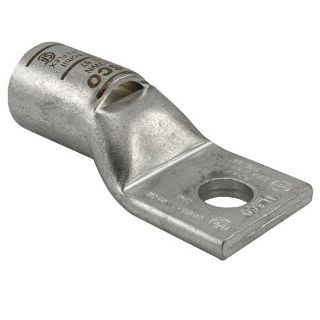

ILSCO® SureCrimp® Lug Compression Connector Sight Hole, 1-Hole, Series: CSWS, Flex Copper Conductor, 1 to 4/0 AWG Conductor, Die Code: ILD-54, 600 VAC to 35 kV VAC, 5/16 in Stud, 0.875 in L x 0.999 in W x 0.141 in THK Tongue, 2.241 in Overall Length, Chamfered/Short/Standard Barrel, 0.546 in ID x 0.687 in OD x 0.875 in L Barrel, 0.937 in L Wire Strip, 90 deg C, 0.343 in Mounting Hole, Tin Plated Copper, Purple, 0.999 in W

Application

Terminating Connector Applications

Standards

NEBS Level 3 | UL 453G | UL 486A-486B File No. E6207 | CSA File No. LR29601 | ECCN EAR99

Features

Manufactured from high strength seamless copper tubing, electro-tin plated
Color coded
Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
Offers maximum conductivity and excellent crimping characteristics
Provides low contact resistance
For easy conductor insertion
Identifies the proper compression die
Application versatility
Reduces inventory requirements
For grounding and bonding applications
Chamfered barrel for visual inspection of proper cable insertion
3/0 AWG flexible alternate conductor size
Electro-tin plated
Standard barrel length with chamfered entry

Specifications

Barrel Size:	0.546 in ID x 0.687 in OD x 0.875 in L
Barrel Type:	Chamfered/Short/Standard
Color:	Purple
Conductor Size:	1 to 4/0 AWG
Conductor Type:	Flex Copper
Country of Origin:	US
Die Code:	ILD-54
Dimensions:	0.999 in W
Material:	Tin Plated Copper
Mounting Hole Size:	0.343 in
Overall Length:	2.241 in
Series:	CSWS
Specifications:	0.937 in L Wire Strip
Stud Size:	5/16 in
Temperature Rating:	90 deg C
Tongue Size:	0.875 in L x 0.999 in W x 0.141 in THK
Voltage Rating:	600 VAC to 35 kV VAC
