Actual Product May Vary From Image

CX100 GAT

Name: CX100 GAT
Brand: Gates Rubber
SKU: CX100 GAT
Price: 87.53 USD
Availability: OutOfStock

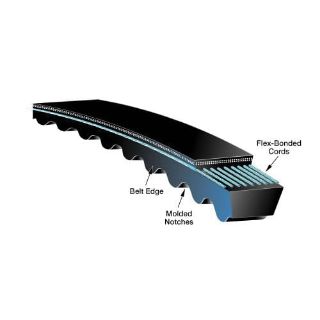

Gates® Tri-Power® CX100 Heavy Duty Molded Notch V-Belt, CX Section, 7/8 in W Top, 104 in L Outside, 17/32 in THK, EPDM

Manufacturer: Gates Rubber

Manufacturer part number: CX100

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$87.53

Qty:

Product Details

Brand Name

Gates®

Type

Heavy Duty Molded Notch

Description

Constructed with Gates® proprietary construction, this belt has a superior combination of flex and load carrying capacity, as well as less stretch resulting in less maintenance.

Gates® Tri-Power® V-Belt, Heavy Duty Molded Notch, Series: 9014, CX Section, 7/8 in Top Width, 104 in Outside Length, 17/32 in Thickness, 1 Rib, 7.958 in Diameter Minimum Pulley, -70 to 250 deg F, EPDM, Flex-Bonded Polyester Reinforced

Application

For all industrial applications, particularly where small or sub-minimal sheave diameters are required

Standards

ARPM/RMA IP-3-2/IP-3-3

Features

Flex-bonded cords are strongly bonded to the body of the belt resulting in equal load distribution and the absorption of bending stress without cord deterioration
Notches molded into the belt during manufacturing increase flexibility making this belt well suited for drives with smaller diameter sheaves
Belt edge is machined for even sheave groove contact resulting in smoother running, less slip and wear
Patented ethylene material construction provides -70 to 250 deg F temperature range to resist belt cracking

Specifications

Country of Origin:	US
Material:	EPDM
Minimum Pulley Diameter:	7.958 in
Number of Ribs:	1
Outside Length:	104 in
Reinforced Material:	Flex-Bonded Polyester
Section Size:	CX
Series:	9014
Temperature Range:	-70 to 250 deg F
Thickness:	17/32 in
Top Width:	7/8 in

Customers who bought this item also bought

50BS13 1 MSG

MFG: Martin Sprocket & Gear

MFG#:50BS13 1

Info:Martin 50BS13 1 Bored-to-Size Type BS Single Pitch Roller Chain Sprocket With Keyway, 1 in Dia Bore, 2.911 in OD, #50 Chain, 13 Teeth, 5/8 in Pitch, Steel

$ -.--

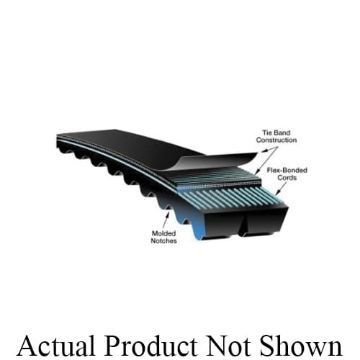

3/5VX1120 GAT
