DFJ-30 BSF

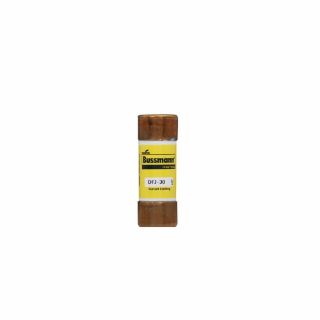

Picture of DFJ-30 BSF
Actual Product May Vary From Image

Product Details

Manufacturer:
Bussmann
Manufacturer part number:
DFJ-30
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
Availability:
Expected Leadtime 14 days
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$127.74 / EA

Description

Brand Name

Bussmann

Type

Current Limiting

Alternate Supplier #

Grainger - 30YE07

Description

The Bussmann series DFJ drive fuse is a high speed, current limiting fuse that provides maximum protection for AC and DC drives and controllers and meet NEC branch circuit protection requirements. The drive fuse has the lowest I2t of any branch circuit fuse to protect power semiconductor devices that utilize diodes, GTOs, SCRs and SSRs.
Bussmann High Speed Drive Fuse, Current Limiting, Series: DFJ, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 30 A, 600 VAC/450 VDC, 200/100 kAIC Interrupt, Class: J, Clip-Lock Terminal, Stud Mount, Cylindrical Body Type, Silver Element, Melamine, 0.81 in Dia x 2.25 in L Body Size

Application

Industrial Facilities and Factories, Safety and Security Systems, AC/DC Drives and Equipment Power Semiconductor Devices Protection Applications

Standards

CE Certified | CSA 1422-02/File No. 53787 | RoHS Compliant | UL 248-8 | UL File No. E4273 | UL Guide JDDZ

Features

  • Easily co-ordinated with existing and new variable speed drives and electric controllers
  • Standard class J dimensions allowing the use of readily available fuse blocks, holders and switches
  • Allows the lowest let-thru energy of any branch circuit over current protective device
  • Silver fuse element
  • They provide maximum protection for AC and DC drives and controllers and meet NEC® branch circuit protection requirements
  • The DFJ drive fuse has the lowest I2t of any branch circuit fuse to protect power semiconductor devices that utilize diodes, GTOs, SCRs and SSRs

Specifications

Amperage Rating:30 A
Body Size:0.81 in Dia x 2.25 in L
Body Type:Cartridge
Class:J
Country of Origin:MX
Element:Silver
Indicating/Non-Indicating:Non-Indicating
Interrupt Rating:100/200 kA
Material:Melamine
Mounting Type:Stud
Rejection/Non-Rejection:Non-Rejection
Series:DFJ
Terminal Type:Clip-Lock
Voltage Rating:600 VAC/450 VDC
