DNF14-250FIB-C PAN

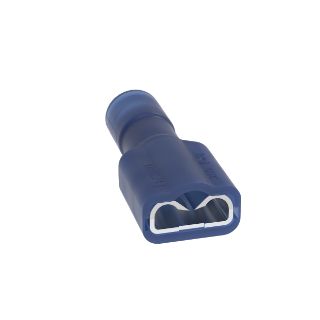

Picture of DNF14-250FIB-C PAN
Actual Product May Vary From Image

Product Details

Manufacturer:
Panduit
Manufacturer part number:
DNF14-250FIB-C
CBT Inventory
100
Vendor Inventory
Loading...
CBT - CINCINNATI
100
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
100 in stock
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1.32 / EA

Description

Brand Name

Panduit®

Type

Loose Piece Vibration-Resistant

Description

Panduit® Pan-Term® disconnects are designed and precision made to function as a reliable method of making quick, repeatable interconnections. Available with nylon, premium nylon or vinyl insulation or non-insulated.
Panduit®, DNF14-250FIB-C, Female Disconnect, Loose Piece Vibration-Resistant, Series: DNF-FIB, Stranded Copper Conductor, 16 to 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam/Funnel Entry Barrel, Crimp Terminal, 600 VAC, Specifications: 9/32 in L Wire Strip, 0.16 in Dia Maximum Wire Nylon Insulation, 221 deg F, Brass, Blue, Tin Plated, 0.84 in L x 0.35 in W x 0.22 in H Dimensions, Insulated: Fully Insulated

Application

For making quick and repeatable interconnections

Standards

ARRA Compliant | Buy American Act Compliant | C22.2 No. 153/LR31212 | RoHS Compliant | UL 310/20H3 File No. E78522 | UL HB Flammability Rated | UL94 V-2 Flammability Rated

Features

  • Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
  • Fully insulated design provides protection from electrical shorts
  • Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
  • Right angle design for use in limited space applications

Specifications

Barrel Type:Butted Seam/Funnel Entry
Color:Blue
Conductor Size:14 AWG
Conductor Type:Stranded
Country of Origin:MX
Dimensions:0.84 in L x 0.35 in W x 0.22 in H
Finish:Tin Plated
Insulated:Fully Insulated
Material:Brass
Series:DNF-FIB
Specifications:0.16 in Dia Nylon Insulation, 9/32 in Mounting Hole Size, 9/32 in L Wire Strip
Tab Size:0.25 in W x 0.032 in THK
Temperature Rating:221 deg F
Terminal Type:Crimp
Voltage Rating:600 VAC
