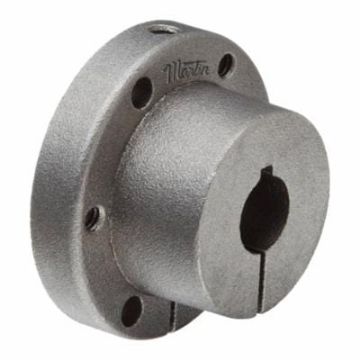

Actual Product May Vary From Image

E 2 15/16 MSG

Name: E 2 15/16 MSG
Brand: Martin Sprocket & Gear
SKU: E 2 15/16 MSG
Price: 123.52 USD
Availability: InStock

Martin E 2 15/16 Standard QD Bushing, 2-15/16 in Dia Bore, 3.834 in Dia Barrel, 6 in Dia Flange, 2-5/8 in OAL, Ductile Iron

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: E 2 15/16

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
1	1	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$123.52

Qty:

Product Details

Brand Name

Martin

Type

Standard

Description

QD (quick detachable) bushings are designed for conventional mounting or reverse mounting. These bushings have a flange.

Martin QD Bushing, Standard, 2-15/16 in Bore Dia, 3.834 in Barrel Dia, 7-1/2 in Hub Dia, 5 in Bolt Circle, 6 in Flange Dia, 3/4 in Flange Thickness, 3 Bolt Holes, 1/2-13 x 2-3/4 in Screw, 20000 in-lb, 2-5/8 in Overall Length, 1/8 x 3/4 in Keyway, Ductile Iron

Features

Size E bushing
QD (quick detachable) bushings are designed for conventional mounting or reverse mounting
These bushings have a flange
Precise machining and processes ensure consistent finish and high quality
Interchangeable with other manufacturers QD bushings

Specifications

Barrel Diameter:	3.834 in
Bolt Circle Diameter:	5 in
Bore Diameter:	2-15/16 in
Country of Origin:	US
Flange Diameter:	6 in
Flange Thickness:	3/4 in
Hub Diameter:	7-1/2 in
Keyway Size:	1/8 x 3/4 in
Material:	Ductile Iron
Number of Bolt Holes:	3
Overall Length:	2-5/8 in
Screw Size:	1/2-13 x 2-3/4 in
Torque Rating:	20000 in-lb
