E150 SHD

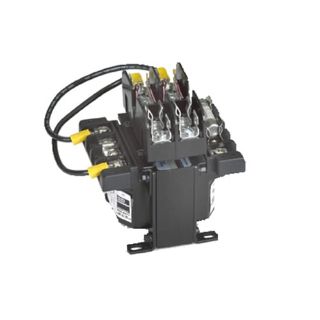

Picture of E150 SHD
Actual Product May Vary From Image

Product Details

Manufacturer:
SolaHD (Emerson)
Manufacturer part number:
E150
product.name:
E150 SHD
CBT Inventory
4
Vendor Inventory
Loading...
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
$107.62 / EA

Description

Type

SBE Encapsulated Series Transformers

Description

Encapsulated Industrial Control Transformer 150VA, Volts Primary: 220x440, 230x460, 240x 480, Volts Secondary: 110, 115, 120, Frequency 50/60 HZ or 60 HZ

Application

Industrial

Standards

cULus Listed: E77014, UL 506, CSA C22.2 No. 66, RoHS Compliant

Features

"50-1,000 VA, 50/60 Hz, suitable for world wide applications. Interleaved copper windings reduce I2R losses and maximize efficiency. 55 DEG C/131 DEG F rise, 105 DEG C insulation system to minimize heat. Epoxy encapsulated to protect cores and coils against moisture, dirt, and other contaminants. Meets or exceeds NEMA Standard ST 1 and ANSI C89.1 for load inrush capability. Integrally molded, flame retardant (IEC 707/ISO Class 1210) terminal blocks provide greater terminal contact area and improved conductivity. Heavy gauge steel mounting plate. Mounting dimensions are compatible with similar control transformers. Secondary fuse holders (FB2X) included for 13/32"" x 1-1/2"" cartridges (fuses not included)."

Specifications

Country of Origin:VN
Frequency Rating:50/60 HZ
Height:2.96 IN
KVA Rating:0.15
Length:4.61 IN
Mounting:Heavy Gauge Steel Mounting Plate
Number of Phases:1
Primary Voltage:240 x 480 Volt Primary
Secondary Voltage:120 Volt Secondary
Wattage:100 VA
Width:3.39 IN

Resources

Spec SheetWarranty
