EK4036S INM

Name: EK4036S INM
Brand: INTERMATIC INC. / A-D
SKU: EK4036S INM
Availability: InStock

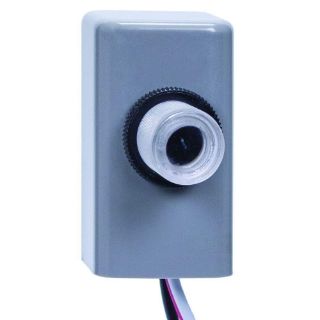

Actual Product May Vary From Image

Product Details

Manufacturers:

INTERMATIC INC. / A-D , INTERMATIC INC. / A-D , INTERMATIC INC. / A-D , INTERMATIC INC. / A-D

Manufacturer part number:

EK4036S

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Intermatic®

Type

Button

Alternate Supplier #

Grainger - 52RU68

Description

The EK4036S is an electronic photo control that fits in a standard outlet box, post lamp or light fixture. It is made within dimensional guidelines in ANSI C136-24 to assure fit within a large variety of fixtures and features a silicon light sensor with zero-crossing circuit to provide a long service life.

Intermatic® NightFox™ Electronic Photocontrol, Button, 105 to 305 VAC, 6 A, 50/60 Hz Frequency, 1000 W Tungsten, 1800 VA Ballast, 255 J Arrester, 2 to 5 s Timing, 18 AWG Wire, Solid State Photo/Silicon IR Filtered Sensor, 1.5 FC On/2.25 FC Off Sensitivity, NEMA 4/10 Enclosure, Environmental Conditions: -40 to 158 deg F Operating Temperature, 10000 Cycles Operating Cycles, Button Fixed Mounting, Polycarbonate, Gray, 2.25 in H x 1.3 in W x 1.24 in D Dimensions

Application

Dusk to Dawn Lighting Control, Exterior Lighting, Street Lighting, Parking Lot, Pedestrian Pathway and Landscape Lighting Applications

Standards

ANSI C136.24 Compliant | UL Certified to US | CSA Certified to Canadian | Title CA 20 Listed

Features

Non-drift silicon light sensor with IR filter
DC relay with zero-crossing circuitry for extended life
Conformal coated PCB
Exceeds 10,000 ON/OFF switching cycles
Fail ON mode
Ideal for single or multi fixture HID and LED installations (up to 1,650 W at 277 VAC)
255 J MOV surge protection element
Mounts internally to enclosure
Features 3/8 in - 18 NPSM thread for a minimum installation hole size of 5/8 in diameter

Specifications

Amperage Rating:	6 A
Arrester:	255 J
Ballast Load:	1800 VA
Color:	Gray
Country of Origin:	MX
Dimensions:	2.25 in H x 1.3 in W x 1.24 in D
Enclosure Type:	NEMA 4/10
Environmental Conditions:	-40 to 158 deg F Operating Temperature
Frequency Rating:	50/60 Hz
Material:	Polycarbonate
Mounting Type:	Button Fixed
Operating Cycles:	10000 Cycles
Sensitivity:	1.5 FC On/2.25 FC Off
Sensor Type:	Solid State Photo/Silicon IR Filtered
Timing Range:	2 to 5 s
Tungsten Rating:	1000 W
Voltage Rating:	105 to 305 VAC
Wire Size:	18 AWG
