EK4536 INM

Name: EK4536 INM
Brand: INTERMATIC INC. / A-D
SKU: EK4536 INM
Availability: OutOfStock

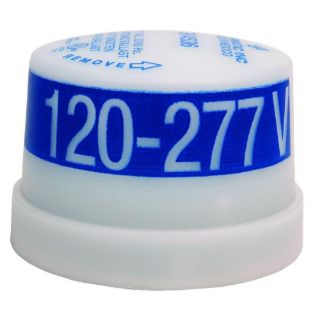

Actual Product May Vary From Image

Product Details

Manufacturers:

INTERMATIC INC. / A-D , INTERMATIC INC. / A-D , INTERMATIC INC. / A-D , INTERMATIC INC. / A-D , INTERMATIC INC. / A-D

Manufacturer part number:

EK4536

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Intermatic®

Type

Side

Alternate Supplier #

Grainger - 20XE70

Description

Intermatic® Turn-Lock Photocontrol, Side, Multi Fixture, 105 to 305 VAC, 6 A, 50/60 Hz Frequency, 1800 VA Tungsten, 1000 W Ballast, 510 J Arrester, 2 to 5 s Timing, Solid State Photo Sensor, 1.5 FC (ON), 2.25 FC (OFF) Sensitivity, NEMA 4/10 Enclosure, Environmental Conditions: -40 to 70 deg F Operating Temperature, 10000 Cycles Operating Cycles, Twist-Lock Mounting, Polypropylene, White, 2.97 in Dia x 2.721 in H Dimensions

Application

Dusk to Dawn Lighting Control, Exterior Lighting, Street Lighting, Parking Lot, Pedestrian Pathway and Landscape Lighting Applications

Standards

ANSI C136.24 Compliant | CSA Certified to Canadian | Title CA 20 Listed | RoHS Compliant

Features

Non-drift silicon light sensor with IR filter
DC relay with zero-crossing circuitry for extended life
Conformal coated PCB
Exceeds 10,000 ON/OFF switching cycles
Ideal for single or multifixture HID and LED installations (up to 1,650 W at 277 VAC)
510 J MOV surge protection
High precision, microprocessor-controlled zero-cross switching, individually calibrated to extend the life of 20 A relay independent of load being switched
All components meet 15-year life expectancy

Specifications

Amperage Rating:	6 A
Arrester:	510 J
Ballast Load:	1000 W
Color:	White
Country of Origin:	MX
Dimensions:	2.97 in Dia x 2.721 in H
Enclosure Type:	NEMA 4/10
Environmental Conditions:	-40 to 70 deg F Operating Temperature
Fixture Type:	Multi
Frequency Rating:	50/60 Hz
Material:	Polypropylene
Mounting Type:	Twist-Lock
Operating Cycles:	10000 Cycles
Sensitivity:	1.5 FC (ON), 2.25 FC (OFF)
Sensor Type:	Solid State Photo
Timing Range:	2 to 5 s
Tungsten Rating:	1800 VA
Voltage Rating:	105 to 305 VAC
