EM3311T BLD

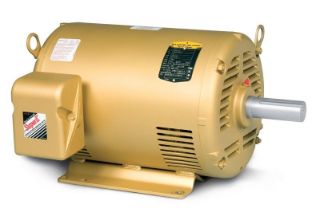

Picture of EM3311T BLD
Actual Product May Vary From Image

Product Details

Manufacturer:
Baldor Reliance
Manufacturer part number:
EM3311T
product.name:
EM3311T BLD
CBT Inventory
0
Vendor Inventory
Loading...
Availability:
Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
$1,550.35 / EA

Description

Brand Name

Baldor-Reliance

Type

AC Motors

Description

Baldor Electric; AC Motor; Temperature Rating: 40 DEG C Amabient Condition; Horsepower: 7.5 HP; Phase: 3 PH; Voltage Rating: 208-230/460 VAC; Full Load Current: 20.4-19.4/9.7 AMP; Power Factor: 79; Service Factor: 1.15; Enclosure: OPSB; Frame: 213T; Insul

Application

General Purpose

Features

7.5HP,1770RPM,3PH,60HZ,213T,3733M,OPSB,F

Specifications

Base:Rigid
Country of Origin:US
Duty:Continuous
Enclosure:OPSB
Frame:213
Frequency Rating:60 Hz
Full Load Current:20.4 A; 19.4 A; 9.7 A
Horsepower:7.500 hp
Insulation Class:F
Mounting:F1
NEMA Design:A
NEMA Nominal Efficincy:91.00%
Phase:Three Phase
Power Factor:79
Rotation:Reversible
Service Factor:1.15
Speed Rating:1,770 rpm
Sub Brand:Super-E
Voltage Rating:460 V; 230 V; 208 V

Resources

Tech DrawingSpec SheetWarranty

Products Specifications

Brand Name
Baldor-Reliance
Enclosure
OPSB
Frame
213T
Frequency Rating
60 Hz
Horsepower
7 1/2 HP
Speed Rating
1800 RPM
Type
General Purpose Motor
Voltage Rating
208-230/460
