EM3538 BLD

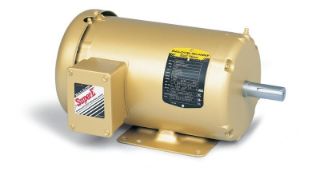

Picture of EM3538 BLD
Actual Product May Vary From Image

Product Details

Manufacturer:
Baldor Reliance
Manufacturer part number:
EM3538
CBT Inventory
0
Vendor Inventory
Loading...
CBT - Cincinnati
0
CBT - Springboro
0
CBT - Sidney
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
$741.00 / EA

Description

Brand Name

Baldor-Reliance

Type

AC Motors

Description

.5HP,1750RPM,3PH,60HZ,56,3516M,TEFC,F1,N

Application

General Purpose

Features

.5HP,1750RPM,3PH,60HZ,56,3516M,TEFC,F1,N

Specifications

Base:Rigid
Country of Origin:US
Duty:Continuous
Enclosure:TEFC
Frame:56
Frequency Rating:60 Hz
Full Load Current:0.8 A; 1.5 A
Horsepower:0.500 hp
Insulation Class:F
Mounting:F1
NEMA Design:B
NEMA Nominal Efficincy:82.50%
Phase:Three Phase
Power Factor:74
Rotation:Reversible
Service Factor:1.15
Speed Rating:1,735 rpm
Sub Brand:Super-E
Voltage Rating:460 V; 230 V

Resources

Spec SheetWarranty

Products Specifications

Brand Name
Baldor
Enclosure
TEFC
Frame
56
Frequency Rating
60 Hz
Horsepower
1/2 HP
Speed Rating
1800 RPM
Type
General Purpose Motor
Voltage Rating
230/460 V
