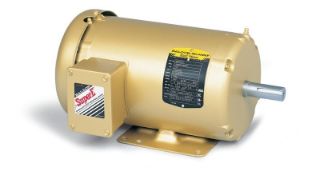

Picture of EM3555T BLD
Actual Product May Vary From Image

EM3555T BLD

2HP,3490RPM,3PH,60HZ,145T,3526M,TEFC,F1
Manufacturer: Baldor Reliance
Manufacturer part number: EM3555T
Availability: Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
1 1
Loading...
$1,005.15

Product Details

Brand Name

Baldor-Reliance

Type

AC Motors

Application

General Purpose

Features

2HP,3490RPM,3PH,60HZ,145T,3526M,TEFC,F1

Specifications

Base:Rigid
Country of Origin:US
Duty:Continuous
Enclosure:TEFC
Frame:145
Frequency Rating:60 Hz
Full Load Current:5.0 A; 2.5 A; 5.3 A
Horsepower:2.000 hp
Insulation Class:F
Mounting:F1
NEMA Design:B
NEMA Nominal Efficincy:85.50%
Phase:Three Phase
Power Factor:88
Rotation:Reversible
Service Factor:1.15
Speed Rating:3,490 rpm
Sub Brand:Super-E
Voltage Rating:460 V; 230 V; 208 V

Resources

Spec SheetWarranty
Customers who bought this item also bought

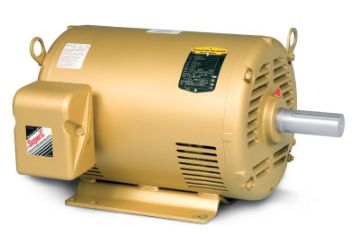

Picture of EM3155T BLD

EM3155T BLD

MFG: Baldor Reliance
MFG#:EM3155T
Info:2HP,3450RPM,3PH,60HZ,145T,3524M,OPSB,F1

$ -.--
