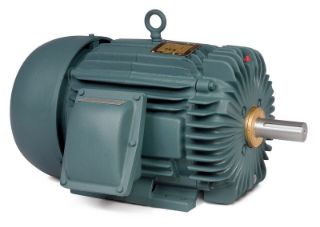

Picture of EM7544T-I BLD
Actual Product May Vary From Image

EM7544T-I BLD

5HP,1750RPM,3PH,60HZ,L184T,TEFC,FOOT,
Manufacturer: Baldor Reliance
Manufacturer part number: EM7544T-I
Availability: Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Baldor-Reliance

Type

AC Motors

Description

CA501;Catalog;1/2/2011;CA501;Catalog;9/3/2012;

Application

Hazardous Location Motor

Features

5HP,1750RPM,3PH,60HZ,L184T,TEFC,FOOT,

Specifications

Base:Rigid
Country of Origin:USA
Duty:Continuous
Enclosure:TEFC
Frame:L184
Frequency Rating:60 Hz
Full Load Current:13.2 A; 6.6 A
Horsepower:5.000 hp
Insulation Class:F
NEMA Design:B
NEMA Nominal Efficincy:89.50%
Phase:Three Phase
Power Factor:8
Rotation:Reversible
Service Factor:1.15
Speed Rating:1,750 rpm
Sub Brand:Super-E
Voltage Rating:230 V; 460 V
