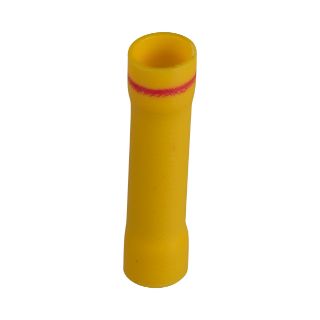

Actual Product May Vary From Image

ESV10-ESV18-Q PAN

Name: ESV10-ESV18-Q PAN
Brand: Panduit
SKU: ESV10-ESV18-Q PAN
Price: 2.69 USD
Availability: InStock

Panduit® ESV10-ESV18-Q Step Down Butt Splice, 12 to 10 AWG, 22 to 16 AWG Conductor, 1.22 in L, Beveled Edge/Brazed Seam/Standard Barrel, Yellow/Red

Manufacturer: Panduit

Manufacturer part number: ESV10-ESV18-Q

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	50
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$2.69

Qty:

Product Details

Brand Name

Panduit®

Type

Step Down

Description

Panduit®, ESV10-ESV18-Q, Butt Splice, Step Down, Stranded Copper Conductor, 12 to 10 AWG, 22 to 16 AWG Conductor, 1.22 in Length, Beveled Edge/Brazed Seam/Standard Barrel, 600 VAC, Specifications: 9/32 in L Wire Strip, 0.24 in Dia Maximum Vinyl Insulation, 167 deg F, Yellow/Red, Tin Plated

Application

For use with KST2000A crimping tools

Standards

ARRA Compliant | Buy American Act Compliant | cULus File No. 20U0/E52164 | RoHS Compliant

Features

Designed to splice two solid or stranded wires together to repair or lengthen wires
Butted configuration provides low profile for limited space applications
Internal wire stop assures proper length of insertion into terminal barrel
For use with KST2000A crimping tools

Specifications

Barrel Type:	Beveled Edge/Brazed Seam/Standard
Color:	Yellow
Conductor Size:	12 to 10 AWG, 22 to 16 AWG
Conductor Type:	Stranded Copper
Country of Origin:	TW
Finish:	Tin Plated
Length:	1.22 in
Material:	Copper
Specifications:	0.24 in Dia Vinyl Insulation, 0.26 in Mounting Hole Size, 9/32 in L Wire Strip
Temperature Rating:	167 deg F
Voltage Rating:	600 V
