ESV14BX-Q PAN

Name: ESV14BX-Q PAN
Brand: Panduit
SKU: ESV14BX-Q PAN
Price: 0.30 USD
Availability: InStock

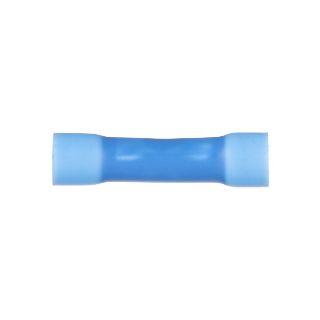

Panduit® ESV14BX-Q Expanded Diameter Butt Splice, 16 to 14 AWG Conductor, 1.04 in L, Brazed/Funnel/Butted Seam Barrel, Blue

Manufacturer: Panduit

Manufacturer part number: ESV14BX-Q

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	100
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$0.30

Qty:

Product Details

Brand Name

Panduit®

Type

Expanded Diameter

Description

Panduit®, ESV14BX-Q, Butt Splice, Expanded Diameter, Solid/Stranded Copper Conductor, 16 to 14 AWG Conductor, 1.04 in Length, Brazed/Funnel/Butted Seam Barrel, 600 VAC, Specifications: 5/16 in L Wire Strip, 0.2 in Dia Maximum Wire Vinyl Insulation, 221 deg F, Blue, Tin Plated

Application

For CT-100A, CT-600-A, CT-1550, CT-1551, CT-2300/ST and CT-2500/L crimp tools

Standards

Features

Designed to splice two solid or stranded wires together to repair or lengthen wires
Butted configuration provides low profile for limited space applications
Brazed seam protects terminal barrel from splitting during the crimp process
Internal wire stop assures proper length of insertion into terminal barrel

Specifications

Barrel Type:	Brazed/Expanded/Funnel Entry
Color:	Blue
Conductor Size:	16 to 14 AWG
Conductor Type:	Solid/Stranded Copper
Country of Origin:	MX
Finish:	Tin Plated
Length:	1.04 in
Material:	Copper
Specifications:	0.2 in Dia Vinyl Insulation, 0.31 in Mounting Hole Size, 5/16 in L Wire Strip
Temperature Rating:	221 deg F
Voltage Rating:	600 VAC
