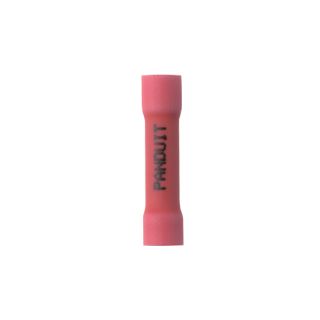

Actual Product May Vary From Image

ESV18BX-Q PAN

Name: ESV18BX-Q PAN
Brand: Panduit
SKU: ESV18BX-Q PAN
Price: 0.26 USD
Availability: InStock

Panduit® ESV18BX-Q Expanded Diameter Butt Splice, 0.5 to 1 sq-mm Conductor, 1.03 in L, Brazed Seam/Funnel/Butted Seam/Expanded Barrel, Red

Manufacturer: Panduit

Manufacturer part number: ESV18BX-Q

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	50
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$0.26

Qty:

Product Details

Brand Name

Panduit®

Type

Expanded Diameter

Description

Panduit®, ESV18BX-Q, Butt Splice, Expanded Diameter, Solid/Stranded Copper Conductor, 0.5 to 1 sq-mm Conductor, 1.03 in Length, Brazed Seam/Funnel/Butted Seam/Expanded Barrel, 600 VAC, Specifications: 7.9 mm L Wire Strip, 0.17 in Dia Maximum Wire Vinyl Insulation, 7.9 mm Mounting Hole Size, 221 deg F, Red, Tin Plated

Application

For CT-100A, CT-600-A, CT-1550, CT-1551, CT-2300/ST and CT-2500/L crimp tools

Standards

Features

Designed to splice two solid or stranded wires together to repair or lengthen wires
Butted configuration provides low profile for limited space applications
Internal wire stop assures proper length of insertion into terminal barrel

Specifications

Barrel Type:	Brazed Seam/Funnel/Butted Seam/Expanded
Color:	Red
Conductor Size:	0.5 to 1 sq-mm
Conductor Type:	Solid/Stranded Copper
Country of Origin:	MX
Finish:	Tin Plated
Length:	1.03 in
Material:	Copper
Specifications:	0.17 in Dia Vinyl Insulation, 0.31 in Mounting Hole Size, 5/16 in L Wire Strip
Temperature Rating:	221 deg F
Voltage Rating:	600 V
