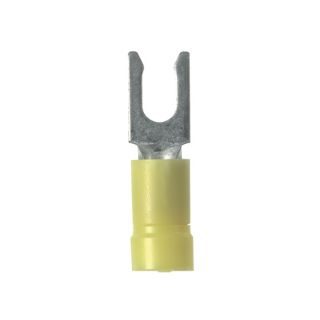

Actual Product May Vary From Image

EV10-14LFB-Q PAN

Name: EV10-14LFB-Q PAN
Brand: Panduit
SKU: EV10-14LFB-Q PAN
Price: 0.36 USD
Availability: InStock

Panduit® EV10-14LFB-Q PV-LF Insulated Fork Terminal, 12 to 10 AWG Conductor, 1.19 in L, Beveled Edge/Butted Seam/Funnel Entry/Serrated Barrel, Copper, Yellow

Manufacturer: Panduit

Manufacturer part number: EV10-14LFB-Q

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	125
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$0.36

This product has a minimum quantity of 25

Qty:

Product Details

Brand Name

Panduit®

Type

Insulated

Description

Panduit®, EV10-14LFB-Q, Fork Terminal, Insulated, Series: PV-LF, Stranded Conductor, 12 to 10 AWG Conductor, 1/4 in Stud, 1.19 in Length, Beveled Edge/Butted Seam/Funnel Entry/Serrated Barrel, Locking Fork Tongue, 0.46 in W x 0.04 in THK Tongue, 600 VAC, Specifications: 5/16 in L Wire Strip, 0.23 in Dia Maximum Wire Vinyl Insulation, 0.36 in Clearance, 221 deg F, Copper, Tin Plated, Yellow, 1.19 in L x 0.46 in W Dimensions

Application

For use with CT-100A, CT-600-A, CT-1550, CT-1551, CT-2300/ST and CT-2500/L crimping tools

Standards

Features

For use with CT-100A, CT-600-A, CT-1550, CT-1551, CT-2300/ST and CT-2500/L crimping tools

Specifications

Barrel Type:	Beveled Edge/Butted Seam/Funnel Entry/Serrated
Color:	Yellow
Conductor Size:	10 AWG
Conductor Type:	Stranded
Country of Origin:	MX
Dimensions:	1.19 in L x 0.46 in W
Finish:	Tin Plated
Length:	1.19 in
Material:	Copper
Series:	PV-LF
Specifications:	5/16 in L Wire Strip, 0.23 in Dia Maximum Wire Vinyl Insulation, 0.36 in Clearance
Stud Size:	1/4 in
Temperature Rating:	221 deg F
Tongue Size:	0.46 in W x 0.04 in THK
Tongue Type:	Locking Fork
Voltage Rating:	600 VAC
