EV10-14RB-Q PAN

Name: EV10-14RB-Q PAN
Brand: Panduit
SKU: EV10-14RB-Q PAN
Price: 0.33 USD
Availability: InStock

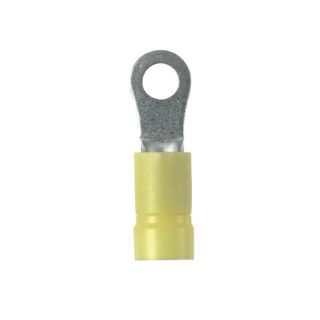

Panduit® EV10-14RB-Q Type EV-RB Ring Terminal, 12 to 10 AWG Conductor, 1.23 in L, Butted Seam/Funnel Entry Barrel, Copper/Vinyl, Yellow

Manufacturer: Panduit

Manufacturer part number: EV10-14RB-Q

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	25
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$0.33

Qty:

Product Details

Brand Name

Panduit®

Type

Type EV-RB

Description

Panduit®, EV10-14RB-Q, Ring Terminal, Type EV-RB, Stranded Conductor, 12 to 10 AWG Conductor, 1/4 in Stud, 1.23 in Length, Butted Seam/Funnel Entry Barrel, 0.52 in W x 0.04 in THK Tongue, 600 VAC, Specifications: 5/16 in L Wire Strip, 0.38 in Clearance, 221 deg F, Copper/Vinyl, Tin Plated, Yellow, 0.27 in Dia x 0.52 in W x 0.04 in THK Dimensions

Application

For general purpose applications

Standards

Features

Ring tongue design assures a secure connection in high vibration applications
Internal barrel serrations assure good wire contact and maximum tensile strength
Without insulation

Specifications

Barrel Type:	Brazed Seam/Butted Seam/Funnel Entry/Internal Serration
Color:	Yellow
Conductor Size:	10 AWG
Conductor Type:	Stranded
Country of Origin:	MX
Dimensions:	0.27 in Dia x 0.52 in W x 0.04 in THK
Finish:	Tin Plated
Length:	1.23 in
Material:	Copper
Specifications:	0.22 in Dia Vinyl Insulation, 0.31 in Mounting Hole Size, 0.38 in Clearance, 5/16 in L Wire Strip
Stud Size:	1/4 in
Temperature Rating:	221 deg F
Tongue Size:	0.52 in W x 0.04 in THK
Tongue Type:	Ring
Voltage Rating:	600 V
