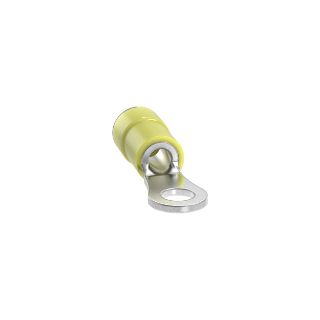

Actual Product May Vary From Image

EV10-8RB-Q PAN

Name: EV10-8RB-Q PAN
Brand: Panduit
SKU: EV10-8RB-Q PAN
Price: 0.33 USD
Availability: OutOfStock

Panduit® EV10-8RB-Q EV-RB Series Insulated Ring Terminal, 12 to 10 AWG Conductor, 1.05 in L, Butted Seam/Funnel Entry Barrel, Copper, Yellow

Manufacturer: Panduit

Manufacturer part number: EV10-8RB-Q

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$0.33

This product has a minimum quantity of 25

Qty:

Product Details

Brand Name

Panduit®

Type

Insulated

Description

Panduit®, EV10-8RB-Q, Ring Terminal, Insulated, Series: EV-RB Series, Stranded Conductor, 12 to 10 AWG Conductor, #8 Stud, 1.05 in Length, Butted Seam/Funnel Entry Barrel, Ring Tongue, 0.31 in W x 0.04 in THK Tongue, 600 VAC, Specifications: 5/16 in L Wire Strip, Vinyl Insulation, 221 deg F, Copper, Tin Plated, Yellow, 0.17 in Dia x 0.31 in W x 0.04 in THK Dimensions

Application

General Purpose Applications

Standards

Features

Ring tongue design assures a secure connection in high vibration applications
Internal barrel serrations assure good wire contact and maximum tensile strength
Without insulation

Specifications

Barrel Type:	Butted Seam/Funnel Entry
Color:	Yellow
Conductor Size:	10 AWG
Conductor Type:	Stranded
Country of Origin:	MX
Dimensions:	0.17 in Dia x 0.31 in W x 0.04 in THK
Finish:	Tin Plated
Length:	1.05 in
Material:	Copper
Series:	EV-RB Series
Specifications:	0.22 in Dia Vinyl Insulation, 0.31 in Mounting Hole Size, 5/16 in L Wire Strip
Stud Size:	#8
Temperature Rating:	221 deg F
Tongue Size:	0.31 in W x 0.04 in THK
Tongue Type:	Ring
Voltage Rating:	600 V
