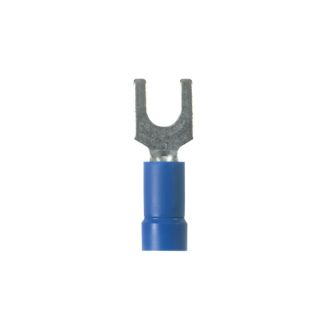

Picture of EV14-10FB-Q PAN
Actual Product May Vary From Image

EV14-10FB-Q PAN

Panduit® EV14-10FB-Q Type EV-FB Loose Piece Fork Terminal, 14 AWG Conductor, 0.92 in L, Butted Seam/Funnel Entry/Standard/Internal Serration Barrel, Copper, Blue
Manufacturer: Panduit
Manufacturer part number: EV14-10FB-Q
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 50
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$0.30

Product Details

Brand Name

Panduit®

Type

Type EV-FB Loose Piece

Description

Panduit® Fork Terminal, Type EV-FB Loose Piece, Stranded Copper Conductor, 14 AWG Conductor, #10 Stud, 0.92 in Length, Butted Seam/Funnel Entry/Standard/Internal Serration Barrel, Standard Fork Tongue, 0.34 in W x 0.03 in THK Tongue, 600 V, Specifications: 0.17 in Dia Vinyl Insulation, 0.31 in Mounting Hole Size, 5/16 in L Wire Strip, 221 deg F, Copper, Tin Plated, Blue

Application

For use with CT-100A, CT-600-A, CT-1550, CT-1551, CT-2300/ST and CT-2500/L crimping tools

Standards

ARRA Compliant | Buy American Act Compliant | CSA File No. LR31212 | cULus 587H File No. E52164 | RoHS Compliant | UL Listed | UL94 V-0 Flammability Rated

Features

  • Fork design provides for fast and easy installation, without the need to remove fastener
  • Flange design provides extra secure connection on a variety of applications
  • Internal barrel serrations assure good wire contact and maximum tensile strength
  • Barrel of terminal internally beveled to provide quick and easy wire insertion
  • Non-expanded insulation
  • For use with CT-100A, CT-600-A, CT-1550, CT-1551, CT-2300/ST and CT-2500/L crimping tools

Specifications

Barrel Type:Butted Seam/Funnel Entry
Color:Blue
Conductor Size:14 AWG
Conductor Type:Solid/Stranded
Country of Origin:MX
Dimensions:0.92 in L x 0.34 in W
Finish:Tin Plated
Length:0.92 in
Material:Copper
Specifications:0.17 in Dia Vinyl Insulation, 0.31 in Mounting Hole Size, 5/16 in L Wire Strip
Stud Size:#10
Temperature Rating:221 deg F
Tongue Size:0.34 in W x 0.03 in THK
Tongue Type:Standard
Voltage Rating:600 VAC
