EV14-10RB-Q PAN

Name: EV14-10RB-Q PAN
Brand: Panduit
SKU: EV14-10RB-Q PAN
Price: 0.29 USD
Availability: InStock

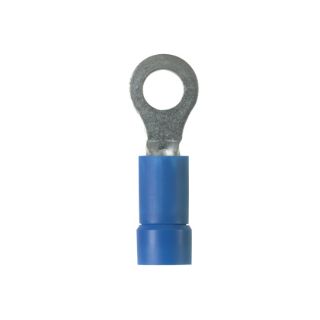

Panduit® EV14-10RB-Q Type EV-RB Ring Terminal, 16 to 14 AWG Conductor, 0.92 in L, Butted Seam/Funnel Entry Barrel, Copper/Vinyl, Blue

Manufacturer: Panduit

Manufacturer part number: EV14-10RB-Q

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	25
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$0.29

Qty:

Product Details

Brand Name

Panduit®

Type

Type EV-RB

Description

Panduit®, EV14-10RB-Q, Ring Terminal, Type EV-RB, Stranded Conductor, 16 to 14 AWG Conductor, #10 Stud, 0.92 in Length, Butted Seam/Funnel Entry Barrel, 0.31 in W x 0.03 in THK Tongue, 600 VAC, Specifications: 5/16 in L Wire Strip, 221 deg F, Copper/Vinyl, Tin Plated, Blue, 0.2 in Dia x 0.31 in W x 0.032 in THK Dimensions

Application

For general purpose applications

Standards

Features

Ring tongue design assures a secure connection in high vibration applications
Internal barrel serrations assure good wire contact and maximum tensile strength
Brazed seam protects terminal barrel from splitting during the crimp process
Barrel of terminal internally beveled to provide quick and easy wire insertion
Without insulation

Specifications

Barrel Type:	Brazed Seam/Butted Seam/Funnel Entry/Internal Serration
Color:	Blue
Conductor Size:	14 AWG
Conductor Type:	Stranded
Country of Origin:	MX
Dimensions:	0.2 in Dia x 0.31 in W x 0.032 in THK
Finish:	Tin Plated
Length:	0.92 in
Material:	Copper
Specifications:	0.31 in Mounting Hole Size, 5/16 in L Wire Strip, Vinyl Insulation
Stud Size:	#10
Temperature Rating:	221 deg F
Tongue Size:	0.31 in W x 0.03 in THK
Tongue Type:	Ring
Voltage Rating:	600 VAC
